Запчасти Case 580N EP (35.701.AD[02]) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

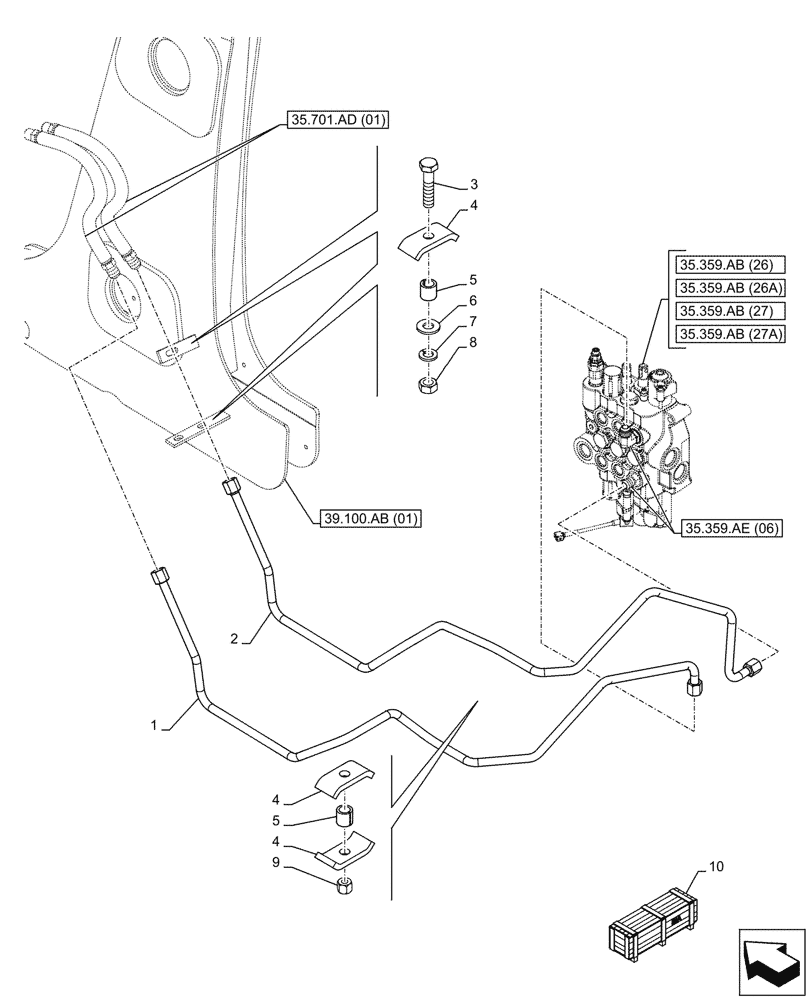

Схема запчастей Case 580N EP - (35.701.AD[02]) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS
35.359.ae (06)
2
4
4
5
10
9
4
8
5
1
6
7
3
35.359.ab (27a)
35.359.ab (26a)
39.100.ab (01)
35.359.ab (26)
35.359.ab (27)
35.701.ad (01)

Артикул

Название

Примечание

Количество

1

47609545

HYD TUBE

4N1 Port A

1шт.

2

47609556

HYD TUBE

4N1 Port B

1шт.

3

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

4

D138055

CLAMP

4шт.

5

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

8

86500689

NUT,M10 x 1.5, Cl 10

2шт.

9

16104121

NUT,M8 x 1.25, Cl 10

1шт.

10

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 13
