Запчасти Case 580N EP (35.701.AD[01]) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

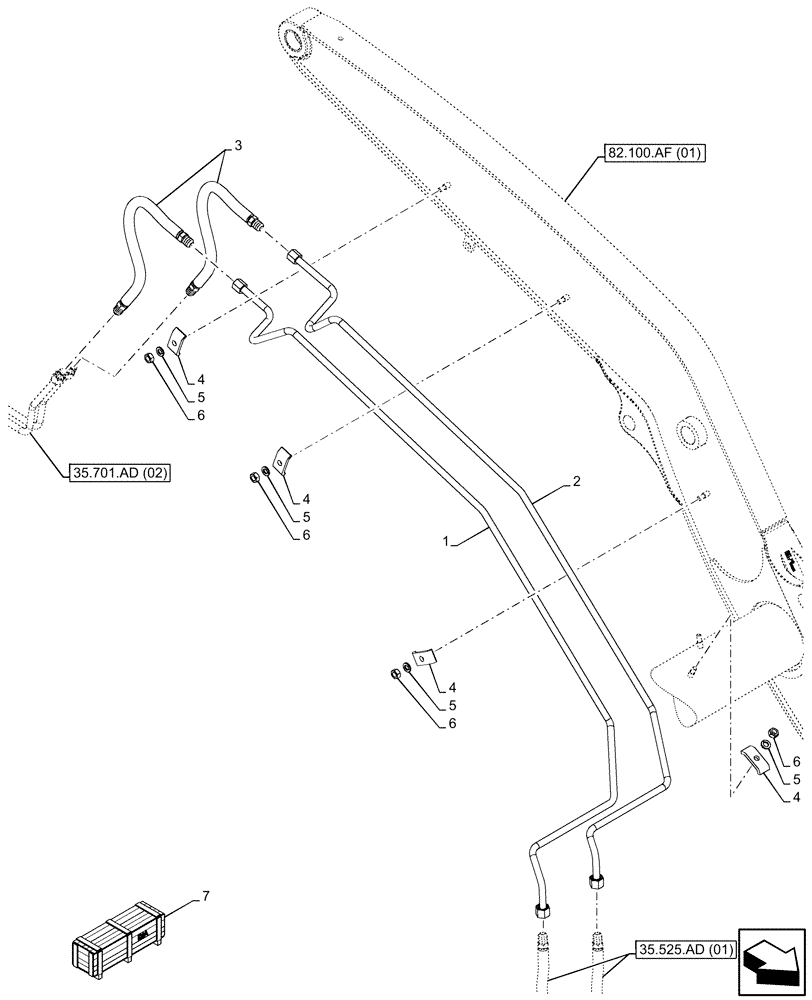

Схема запчастей Case 580N EP - (35.701.AD[01]) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS
35.701.ad (02)
5
1
4
4
3
4
6
6
7
4
2
6
5
5
6
5
35.525.ad (01)
82.100.af (01)

Артикул

Название

Примечание

Количество

1

47702178

TUBE

Loader Arm Bucket, Auxiliary Line, Port B

1шт.

2

47702180

TUBE

Loader Arm Bucket, Auxiliary Line, Port A

1шт.

3

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

Loader Arm Upright

2шт.

4

D138055

CLAMP

4шт.

5

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

6

86500689

NUT,M10 x 1.5, Cl 10

4шт.

7

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 10
