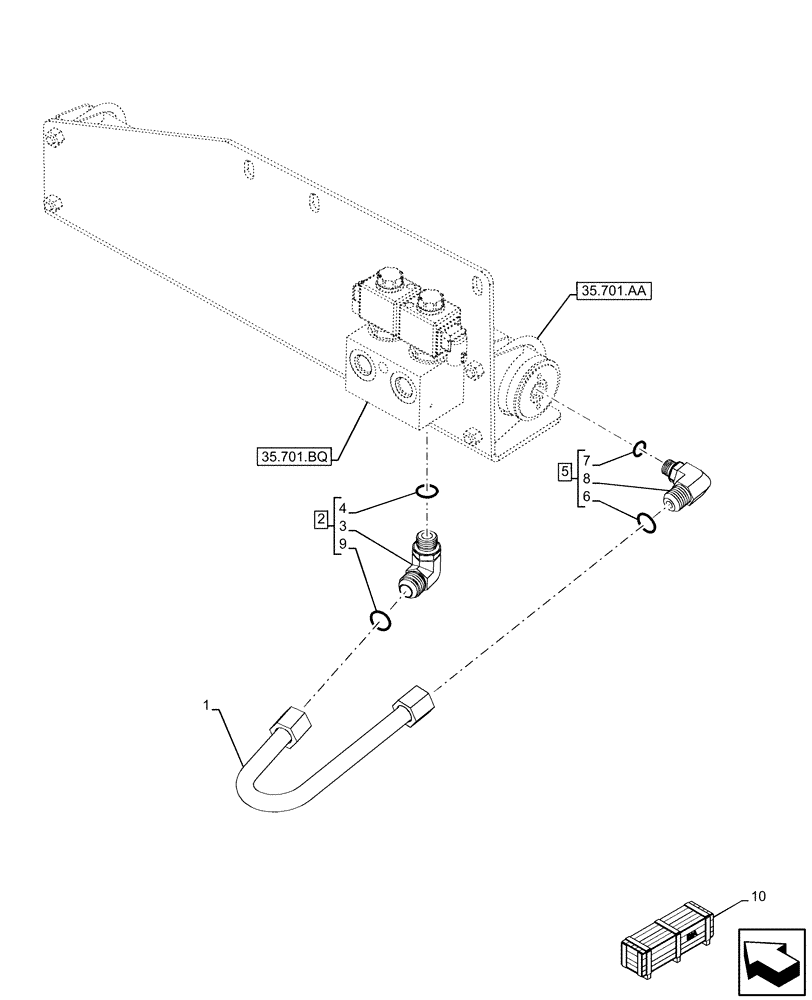

Запчасти Case 580N EP (35.701.AC) - VAR - 423090, 423098 - RIDE CONTROL, ACCUMULATOR, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

87420696

HYD TUBE

Ride Control Valve to Accumulator

1шт.

2

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

ASSY, Incl 3, 4, 9

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

ASSY, Incl 6 - 8

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

47676531

CONSTRUCTION DIA

Standard Ride Control 2WD, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
