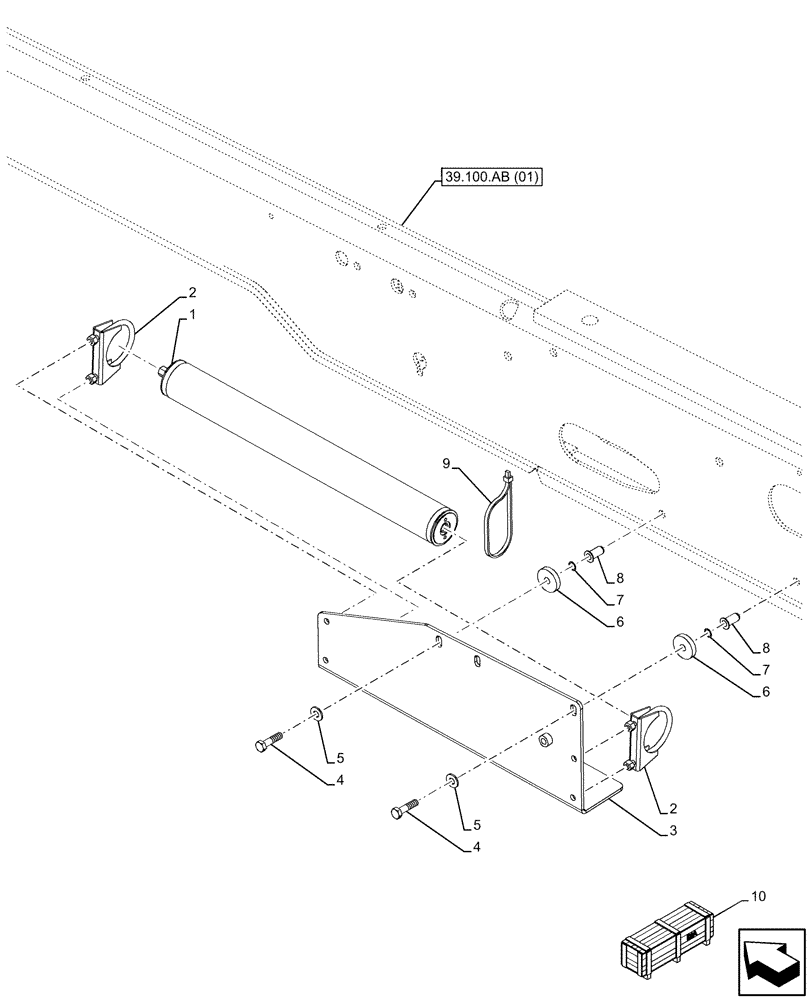

Запчасти Case 580N EP (35.701.AA) - VAR - 423090, 423098 - RIDE CONTROL, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

448284A1

ACCUMULATOR,275 Bar

275 BAR

1шт.

2

A13240

CLAMP,2-5/8" ID

2шт.

3

47442464

BRACKET

Ride Control

1шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

7

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

47676531

CONSTRUCTION DIA

Standard Ride Control 2WD, Incl 1 - 8

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47728597

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 8

1шт.

Valid for 580N, 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47677202

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 1 - 8

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47727593

CONSTRUCTION DIA

Ride Control 2WD, Incl 1 - 8

1шт.

Valid for 580N, 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
