Запчасти Case 580N EP (35.525.AI[02]) - VAR - 423083 - AUXILIARY CONTROL VALVE, OPTIONAL EQUIPMENT (35) - HYDRAULIC SYSTEMS

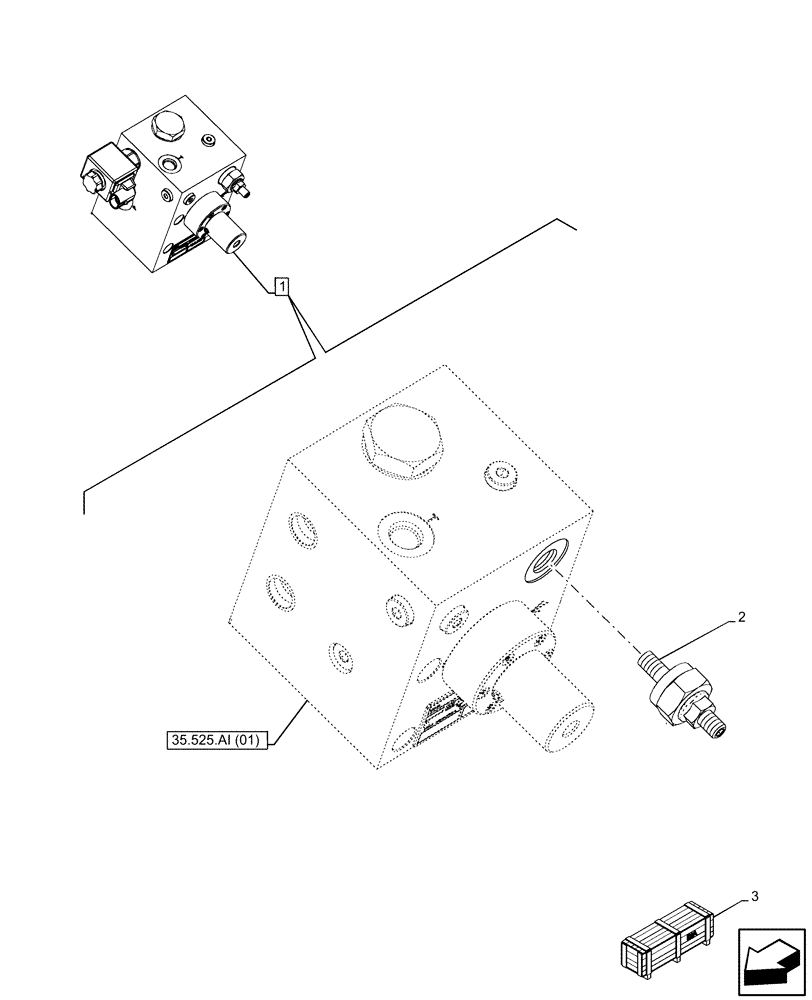

Схема запчастей Case 580N EP - (35.525.AI[02]) - VAR - 423083 - AUXILIARY CONTROL VALVE, OPTIONAL EQUIPMENT (35) - HYDRAULIC SYSTEMS
35.525.ai (01)
3
2
1

Артикул

Название

Примечание

Количество

1

84247109

VALVE

ASSY, Open Center Uni-Aux, Incl 2

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47674176

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546986

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546990

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47674177

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546989

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546992

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546980

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546983

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546982

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546985

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 38
