(35.525.AD[03]) - VAR - 423049 - QUICK COUPLER, LINES

Запчасти Case 580N EP (35.525.AD[03]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

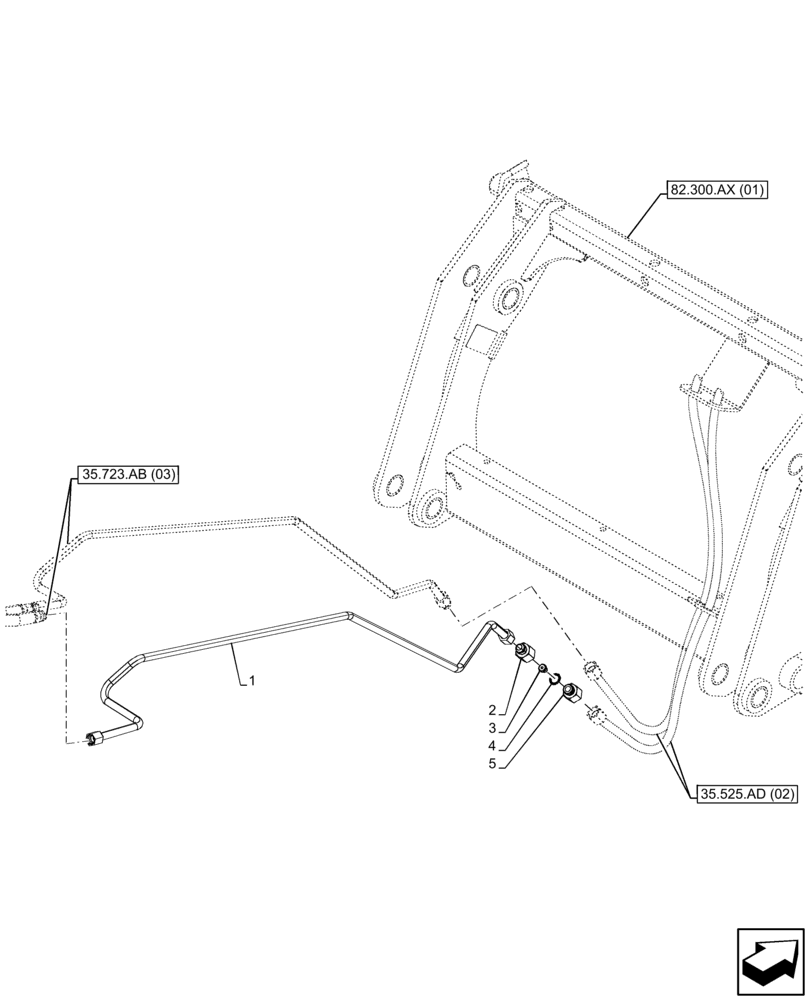

Схема запчастей Case 580N EP - (35.525.AD[03]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS
1
4
5
3
82.300.ax (01)
35.723.ab (03)
2
35.525.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87716484

HYD TUBE

Bucket Port A with Coupler, 1571mm L

1шт.

2

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

Body Restrictor

1шт.

3

304890A1

RESTRICTOR

1шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

1шт.
