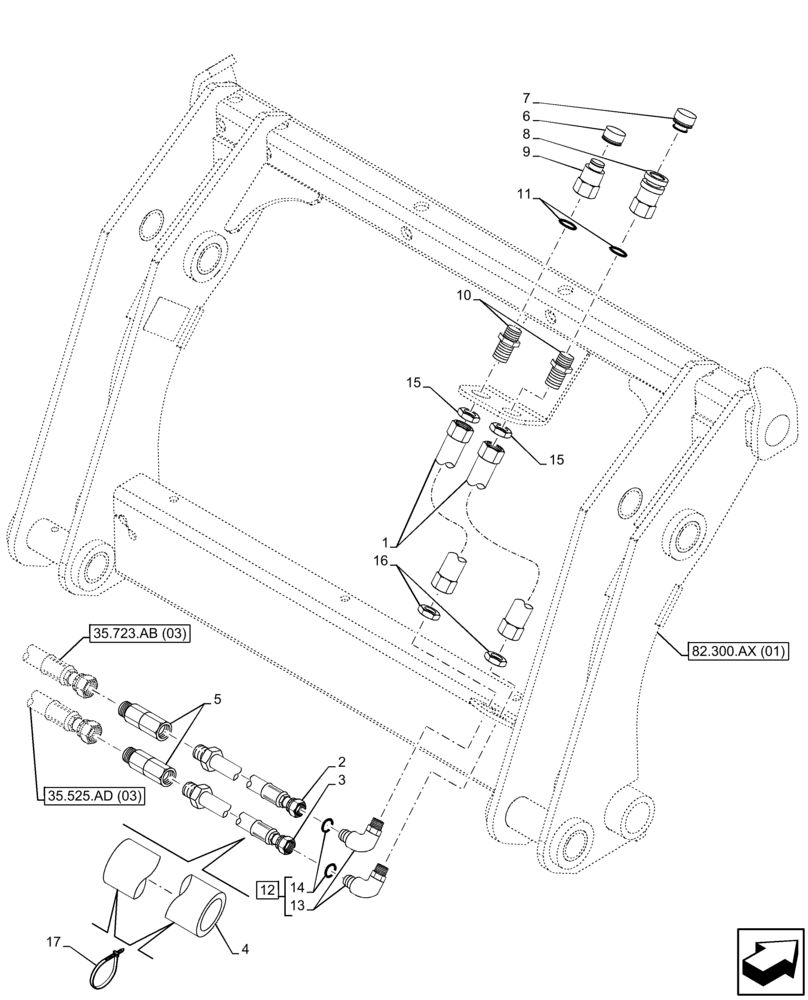

Запчасти Case 580N EP (35.525.AD[02]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

84203107

HYDRAULIC HOSE,469.9mm L

469.9mm L

2шт.

2

307386A1

HYDRAULIC HOSE,628.70 mm

1шт.

3

307387A1

HYDRAULIC HOSE,717.60 mm

1шт.

4

307388A1

HOSE PROTECTION,26" / 660.4mm L

660mm L

1шт.

5

307389A1

PIVOT

2шт.

6

86539390

DUST CAP,44.4mm OD

1шт.

7

86539389

DUST CAP,29.2mm ID

Plug

1шт.

8

86537745

COUPLING, QUICK, FEM,27mm ID

1шт.

9

86537746

QUICK MALE COUPLING,27mm OD, 1.062 - 12" OD

1шт.

10

126155A1

FITTING

2шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ASSY, Incl 13 (Qty 1), 14 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

15

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

16

86625069

LOCK NUT,Blkhd, 7/8"-14

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

2шт.
