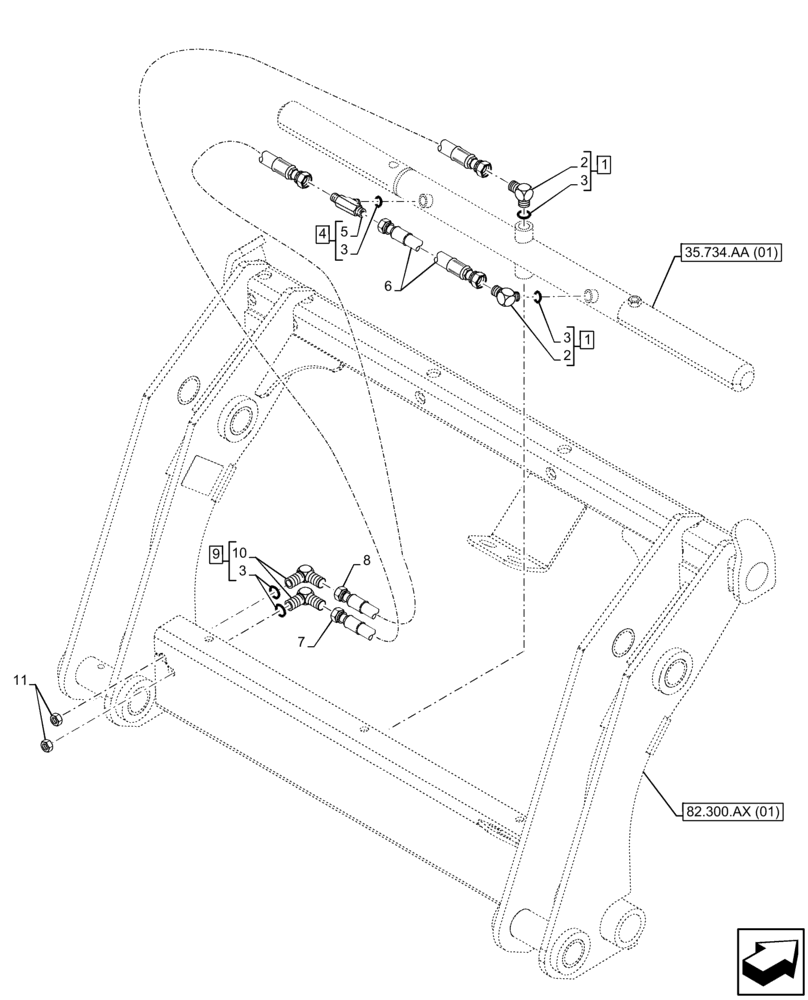

Запчасти Case 580N EP (35.525.AD[01]) - VAR - 423049 - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

4

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

6

305492A1

HYDRAULIC HOSE,260.00 mm

1шт.

7

305494A1

HYDRAULIC HOSE,387.00 mm

1шт.

8

305493A1

HYDRAULIC HOSE,235.00 mm

1шт.

9

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ASSY, Incl 3 (Qty 1), 10 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

2шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.
