Запчасти Case 580N EP (35.525.AA[15]) - VAR - 747662 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

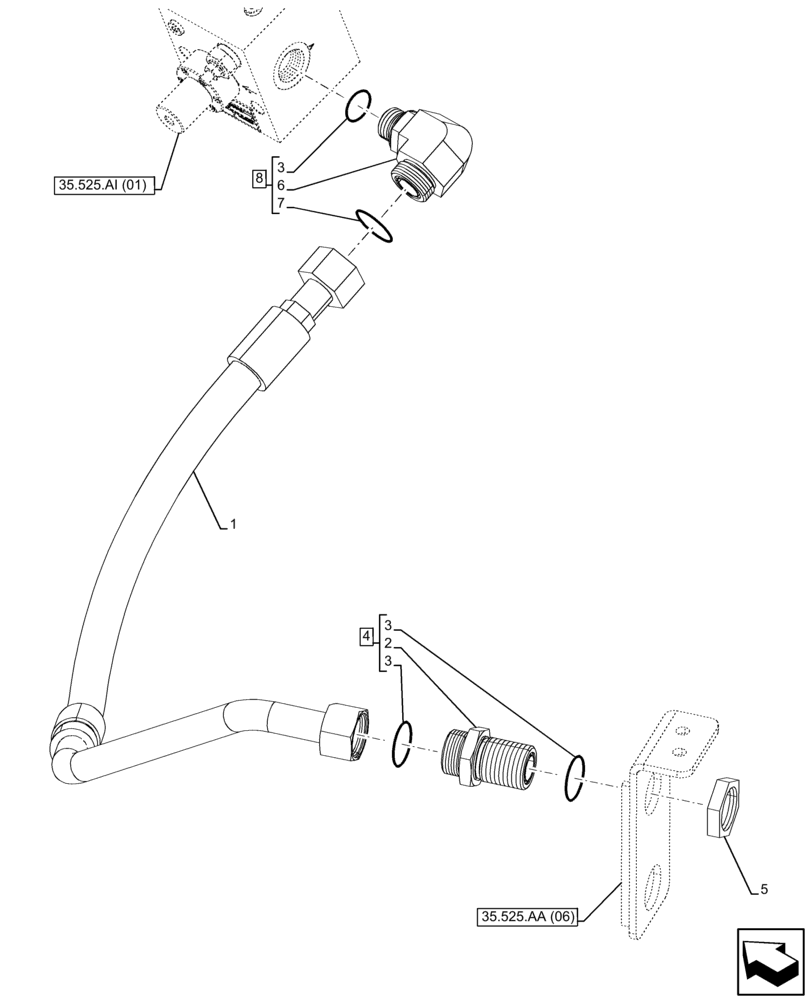

Схема запчастей Case 580N EP - (35.525.AA[15]) - VAR - 747662 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS
4
3
5
7
3
3
6
35.525.aa (06)
35.525.ai (01)
2
1
8

Артикул

Название

Примечание

Количество

1

84407248

HYD TUBE

Uni - Aux Pilot

1шт.

2

NSS

NOT SOLD SEPARAT

Union, Incl in 4

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

4

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

ASSY, Incl 2, 3 (Qty 2)

1шт.

5

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, Incl 3 (Qty 1), 6, 7

1шт.

Выбрано товаров: 8
