Запчасти Case 580N EP (35.525.AA[05]) - AUXILIARY HYDRAULIC, LINES, VALVE, 3 SPOOL (35) - HYDRAULIC SYSTEMS

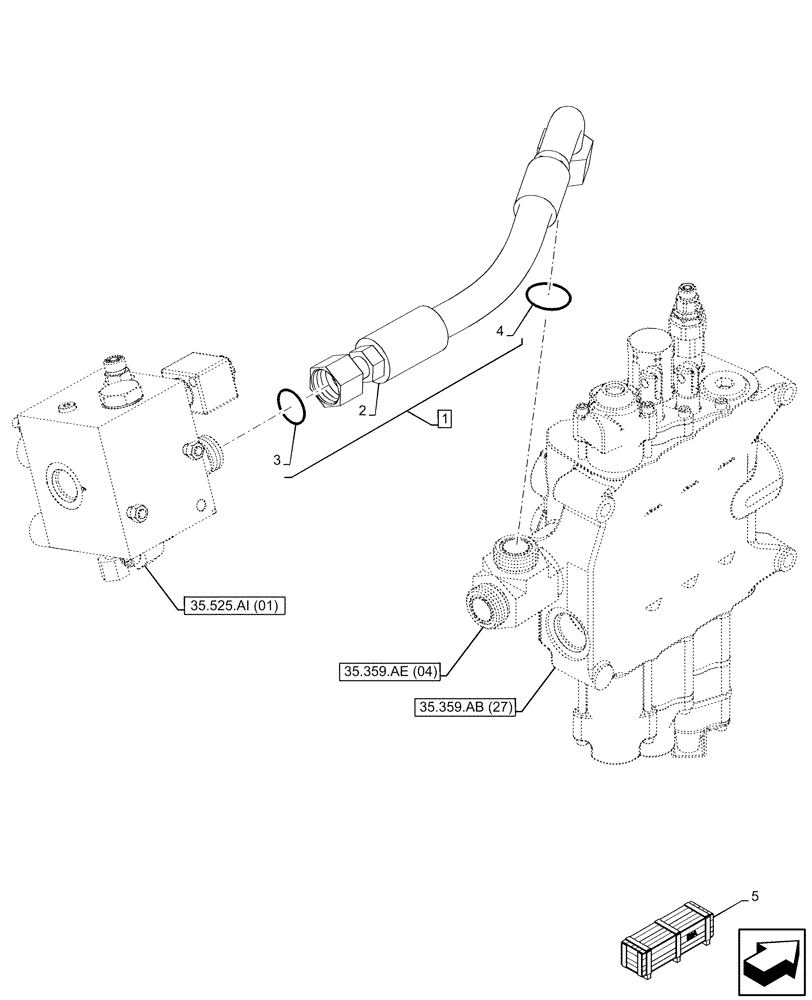

Схема запчастей Case 580N EP - (35.525.AA[05]) - AUXILIARY HYDRAULIC, LINES, VALVE, 3 SPOOL (35) - HYDRAULIC SYSTEMS
35.359.ab (27)
4
1
3
2
5
35.525.ai (01)
35.359.ae (04)

Артикул

Название

Примечание

Количество

1

84275042

HOSE ASSY.,19mm ID x 411mm L

ASSY, Uni Valve to Loader Valve 3 Spool, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

5

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
