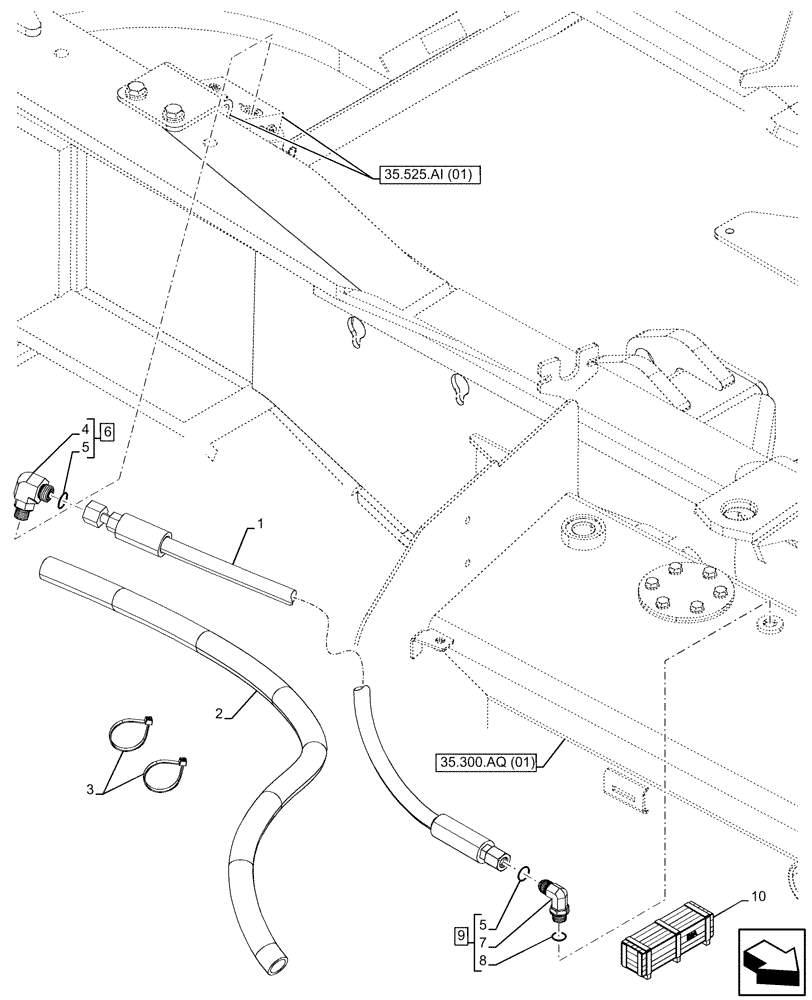

Запчасти Case 580N EP (35.525.AA[03]) - VAR - 423083 - AUXILIARY HYDRAULIC, VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47611424

HYDRAULIC HOSE,10mm ID x 1225mm L

Aux Valve to tank, 10mm ID, 1225mm

1шт.

2

84249061

HOSE PROTECTION,19mm ID x 820mm L

19.01mm ID x 25.7mm OD x 820mm L

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 4, 5 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 5 (Qty 1), 7, 8

1шт.

10

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
