Запчасти Case 580N EP (35.525.AA[02]) - VAR - 423083, 423084, 747661, 747662 - AUXILIARY HYDRAULIC, VALVE, LINE (35) - HYDRAULIC SYSTEMS

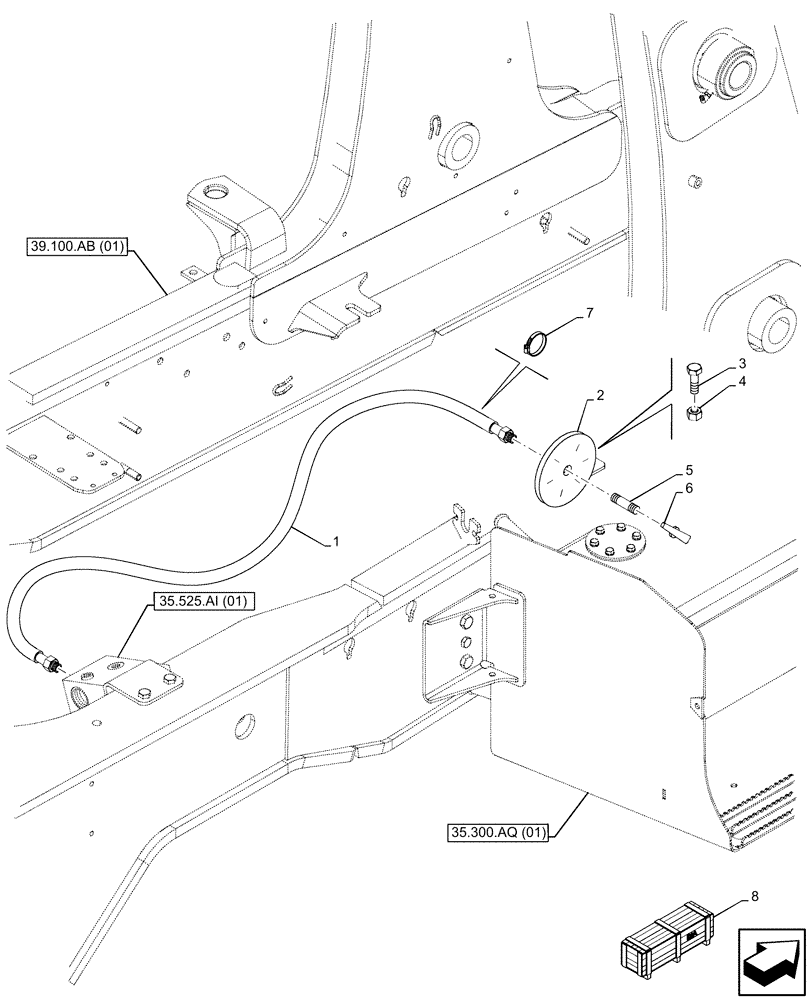

Схема запчастей Case 580N EP - (35.525.AA[02]) - VAR - 423083, 423084, 747661, 747662 - AUXILIARY HYDRAULIC, VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
6
7
2
3
4
8
5
1
35.525.ai (01)
39.100.ab (01)

Артикул

Название

Примечание

Количество

1

84377870

CABLE,1630mm L

Hammer Valve Adjustment

1шт.

2

84391738

BRACKET

1шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

412141

NUT,M10 x 1.5, Cl 8

2шт.

5

13804521

SET SCREW,M8 x 20, Cl 8.8

1шт.

6

84367646

KNOB

1шт.

7

D138055

CLAMP

2шт.

8

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 1 - 4, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 11
