Запчасти Case 580N EP (35.359.AF[11]) - BACKHOE CONTROL VALVE, 8-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

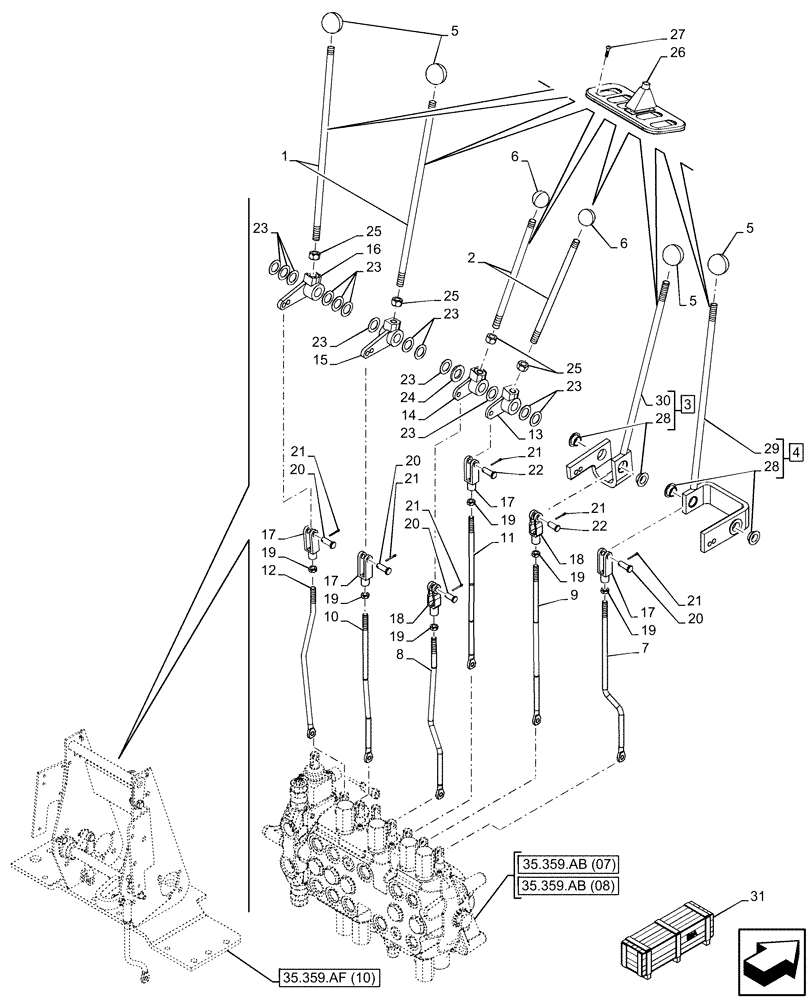

Схема запчастей Case 580N EP - (35.359.AF[11]) - BACKHOE CONTROL VALVE, 8-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS
35.359.ab (07)
19
20
20
21
23
20
21
22
23
27
5
21
13
9
19
8
23
1
12
17
30
10
15
3
2
19
11
18
23
22
29
21
7
23
23
24
19
6
28
4
21
25
19
21
20
6
17
17
16
25
25
26
14
19
17
5
18
28
23
31
5
35.359.ab (08)
35.359.af (10)

Артикул

Название

Примечание

Количество

1

136263A1

ROD,12.7mm OD x 407mm L

2шт.

2

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

2шт.

3

136269A1

LEVER

ASSY, Bucket, Incl 28 (Qty 2), 30

1шт.

4

136267A1

LEVER

ASSY, Boom, Incl 28 (Qty 2), 29

1шт.

5

L54563

KNOB

4шт.

6

D59912

KNOB

2шт.

7

87422241

THREADED ROD,9.53mm D x 363mm L

1шт.

8

87422243

THREADED ROD,9.53mm D x 368mm L

1шт.

9

87422245

THREADED ROD,9.53mm D x 368mm L

1шт.

10

87422247

THREADED ROD,9.53mm D x 352mm L

1шт.

11

87422249

THREADED ROD,9.53mm D x 368mm L

1шт.

12

87446113

THREADED ROD

1шт.

13

D150434

CRANK LEVER

LH Stabilizer

1шт.

14

D150435

CRANK LEVER

RH Stabilizer

1шт.

15

D150397

CRANK LEVER

Dipper

1шт.

16

182006A1

LEVER

Extendable Dipper

1шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

4шт.

18

D150493

END

2шт.

19

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

4шт.

21

432-612

COTTER PIN,3/32" x 3/4"

6шт.

22

427-6088

CLEVIS PIN,3/8" x 3/4"

2шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

13шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

25

425-118

NUT,1/2"-20, G5

4шт.

26

D149867

BOOT

1шт.

27

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

28

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

4шт.

29

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

Lever, Incl in 3

1шт.

31

84490914

SERVICE KIT

Extendable Dipper Conversion, Incl 12, 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 32
