Запчасти Case 580N EP (35.359.AF[04]) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

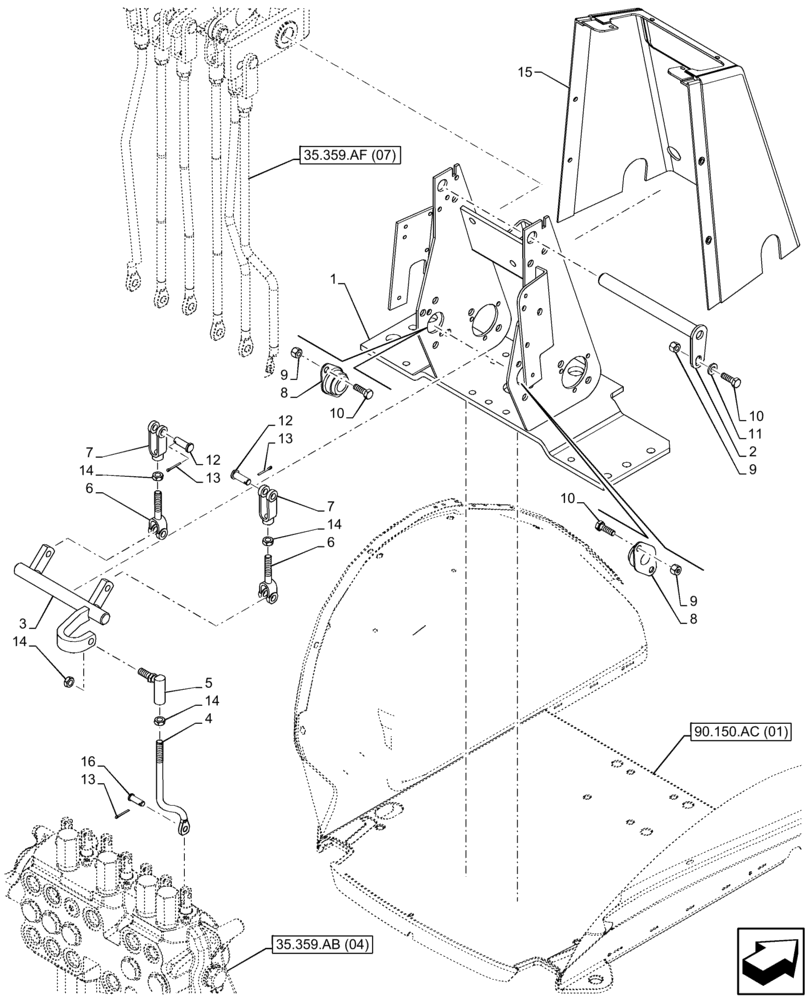

Схема запчастей Case 580N EP - (35.359.AF[04]) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS
14
9
14
7
12
5
35.359.af (07)
14
35.359.ab (04)
12
90.150.ac (01)
11
6
13
14
4
15
7
8
16
13
2
6
9
3
9
10
1
10
10
13
8

Артикул

Название

Примечание

Количество

1

87418516

SUPPORT

Control Tower

1шт.

2

87401203

SHAFT,198mm L

Pivot Backhoe Control

1шт.

3

D148994

SHAFT,182.10mm L

Swing

1шт.

4

87422239

THREADED ROD,9.53mm D x 151mm L

1шт.

5

D149295

BALL JOINT,3/8"

1шт.

6

D150503

END

2шт.

7

D149262

CLEVIS,3/8-24"

2шт.

8

D139039

BEARING ASSY,19mm ID

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

3шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

15

390760A1

COVER

Front Backhoe Console 4 Lever

1шт.

16

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

Выбрано товаров: 16
