Запчасти Case 580N EP (35.359.AE[21]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

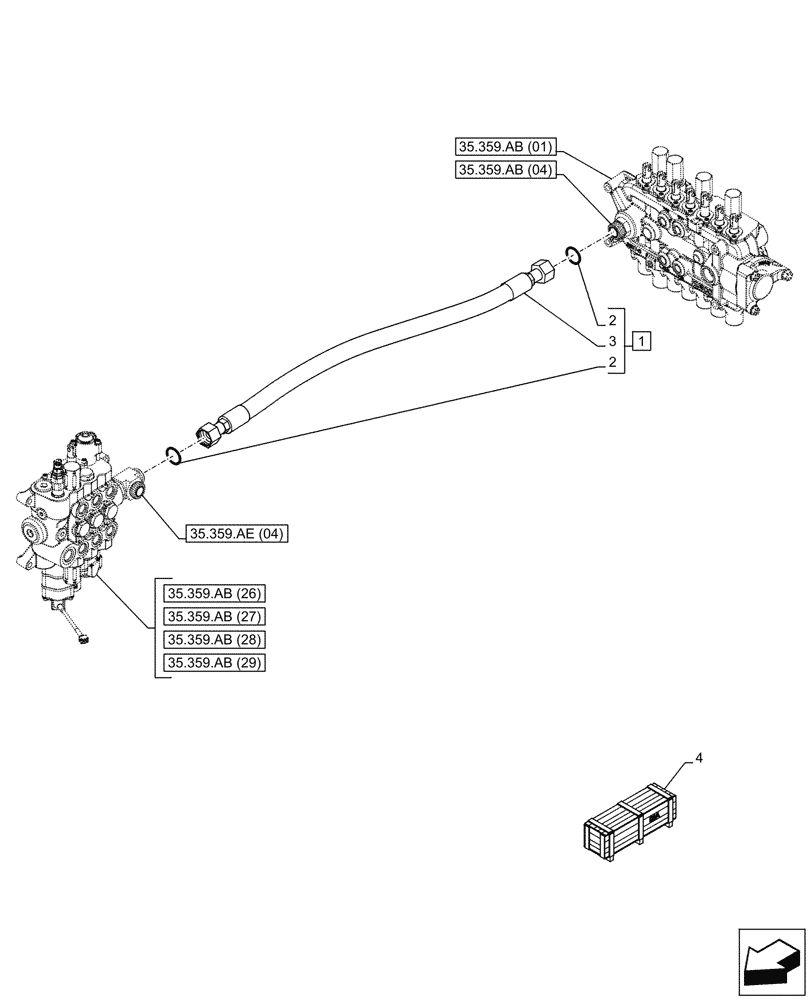

Схема запчастей Case 580N EP - (35.359.AE[21]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
2
3
1
2
4
35.359.ab (26)
35.359.ae (04)
35.359.ab (27)
35.359.ab (29)
35.359.ab (28)
35.359.ab (04)

Артикул

Название

Примечание

Количество

1

47611944

HYDRAULIC HOSE,10mm ID x 907mm L

907mm L, Loader Valve to Backhoe Valve ASSY, Incl 2, 3

1шт.

2

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

4

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
