(35.359.AE[13]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE

Запчасти Case 580N EP (35.359.AE[13]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

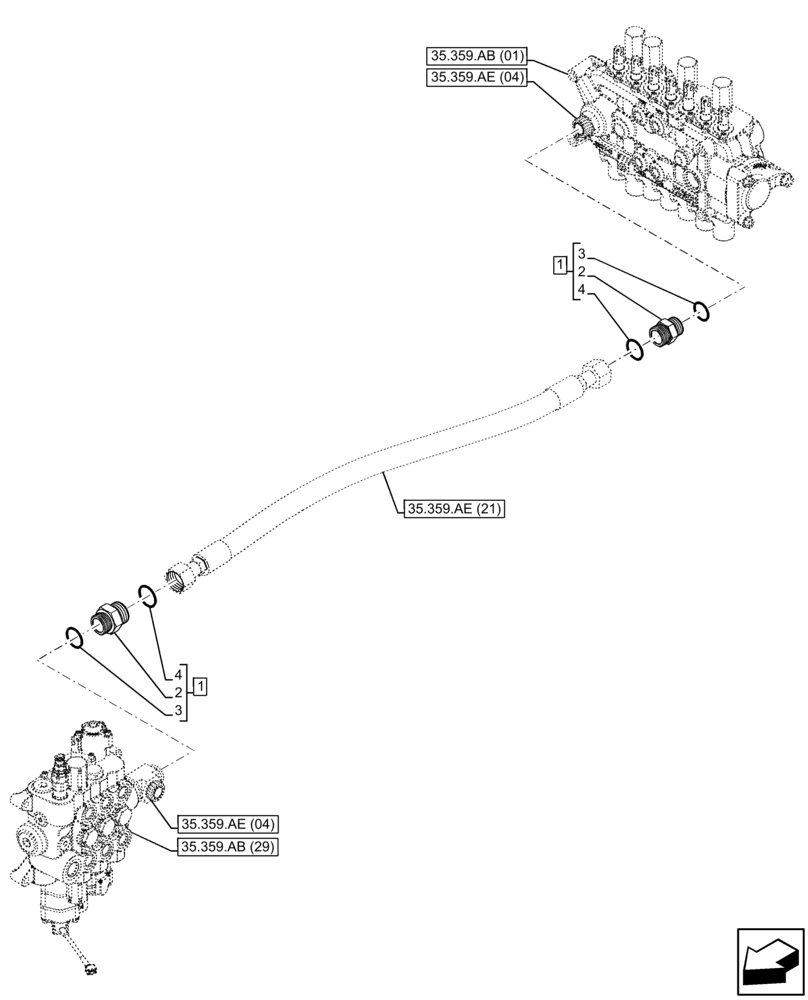

Схема запчастей Case 580N EP - (35.359.AE[13]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
3
2
35.359.ae (04)
35.359.ae (04)
3
4
35.359.ae (21)
1
35.359.ab (01)
1
35.359.ab (29)
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

3

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 4
