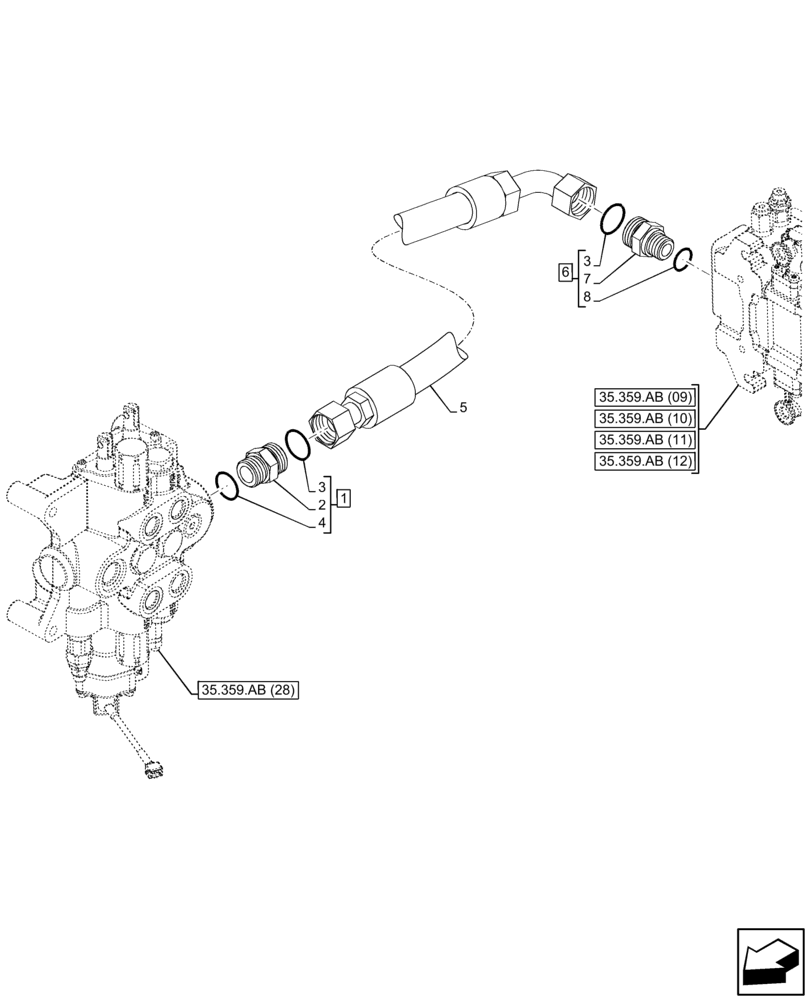

Запчасти Case 580N EP (35.359.AE[12]) - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 2, 3 (Qty 1), 4

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

84468286

HYDRAULIC HOSE,19mm ID x 1040mm L

Loader PB Pilot

1шт.

6

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 3 (Qty 1), 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
