(35.359.AE[11]) - LOADER, CONTROL VALVE LINE, FILTER

Запчасти Case 580N EP (35.359.AE[11]) - LOADER, CONTROL VALVE LINE, FILTER (35) - HYDRAULIC SYSTEMS

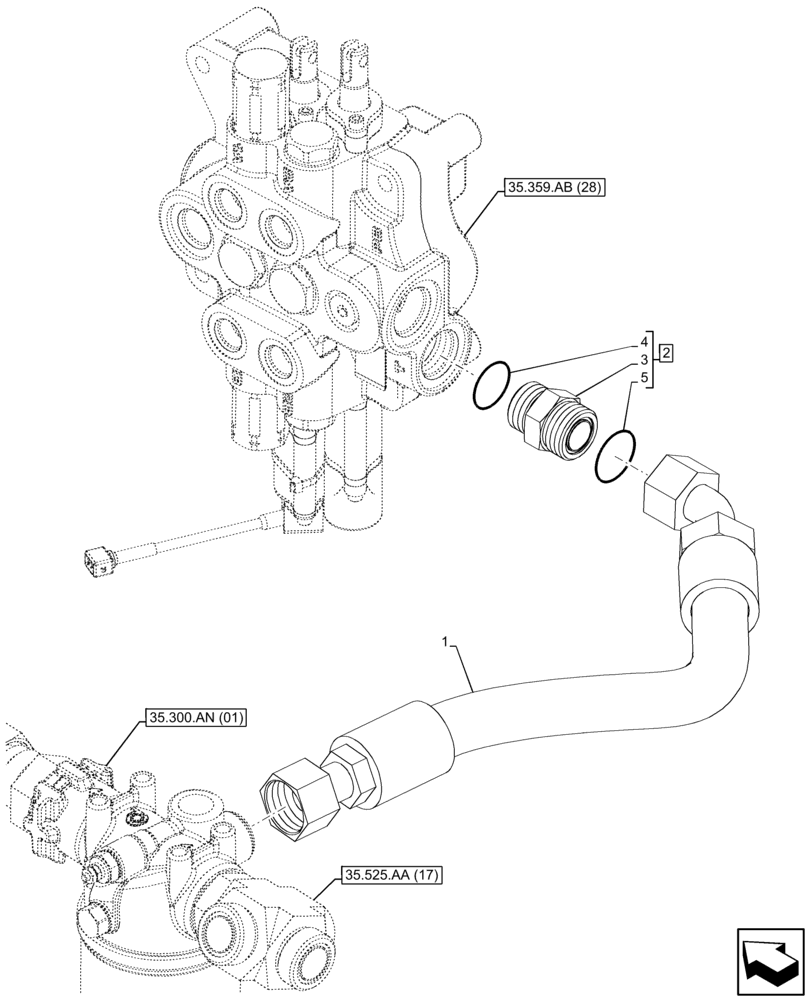

Схема запчастей Case 580N EP - (35.359.AE[11]) - LOADER, CONTROL VALVE LINE, FILTER (35) - HYDRAULIC SYSTEMS
35.359.ab (28)
1
35.300.an (01)
2
4
5
35.525.aa (17)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84278155

HOSE ASSY.,25mm ID x 640mm L

from Loader Valve to Tank

1шт.

2

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
