(35.359.AE[10]) - LOADER, CONTROL VALVE LINE

Запчасти Case 580N EP (35.359.AE[10]) - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

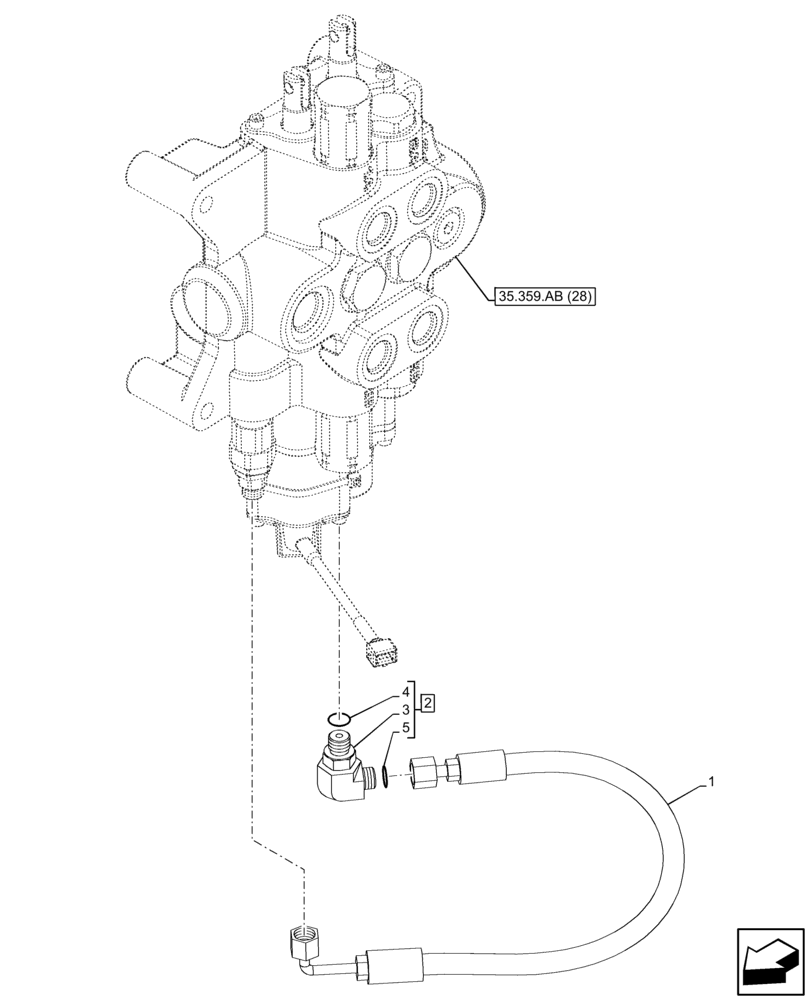

Схема запчастей Case 580N EP - (35.359.AE[10]) - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
2
35.359.ab (28)
3
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84256410

HOSE ASSY.,6.3mm ID x 488mm L

Clam Pilot B

1шт.

2

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
