(580N EP) - BACKHOE LOADER - TIER 4B (2/15-)
/
(35) - HYDRAULIC SYSTEMS
/

(35.359.AE[08]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE

Запчасти Case 580N EP (35.359.AE[08]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

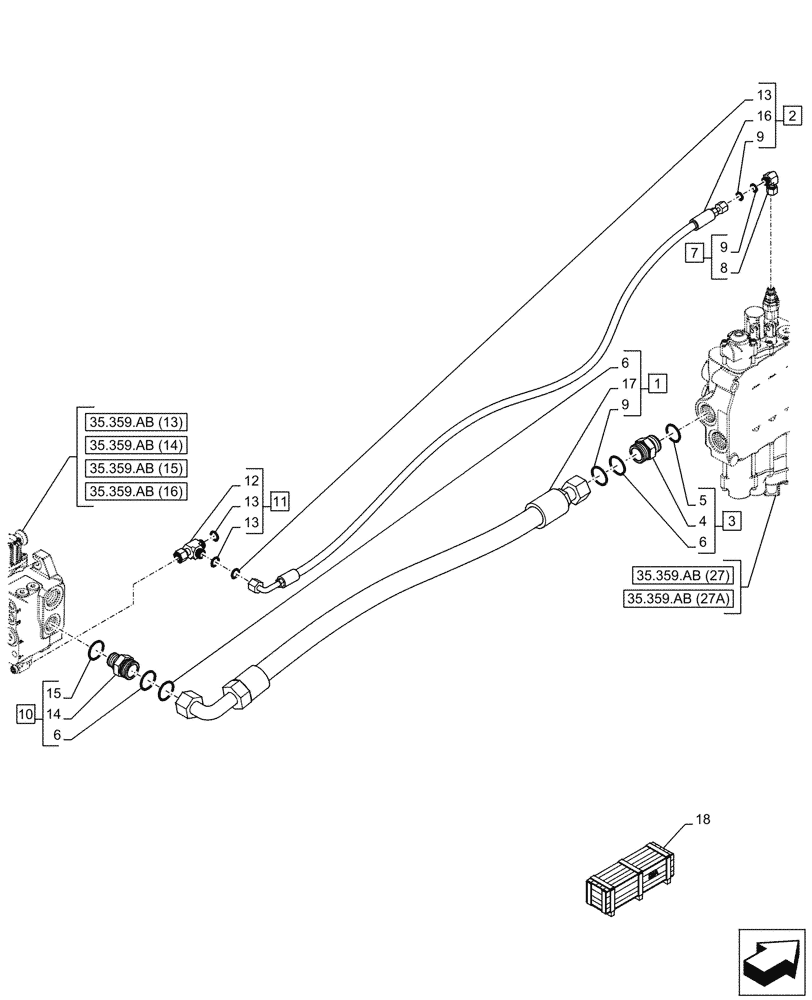

Схема запчастей Case 580N EP - (35.359.AE[08]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.359.ab (15)
3
7
6
12
1
2
18
15
4
13
9
10
17
9
11
8
13
6
6
13
16
9
5
14
35.359.ab (27a)
35.359.ab (16)
35.359.ab (13)
35.359.ab (14)
35.359.ab (27)

№

Артикул

Название

Примечание

Количество

1

84468295

HYDRAULIC HOSE,19mm ID x 1020mm L

Loader PB Pilot ASSY, Incl 6 (Qty 2), 17

1шт.

2

84413043

HYDRAULIC HOSE,6.3mm ID x 1286mm L

Pilot Relief 3 Spool, 1286mm ASSY, Incl 9 (Qty 1), 13 (QTY 1), 16

1шт.

3

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 4 - 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

7

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 6 (Qty 1), 14, 15

1шт.

11

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 12, 13 (Qty 2)

1шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

18

47661783

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1, 2, 6 - 9, 11 - 13, 16, 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for 580N Model Only

1шт.

18

47661814

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 1, 2, 7 - 9, 11 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for 580N Model Only

1шт.

18

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1, 2, 6 - 9, 11 - 13, 16, 17

1шт.

Valid for 580N EP Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
