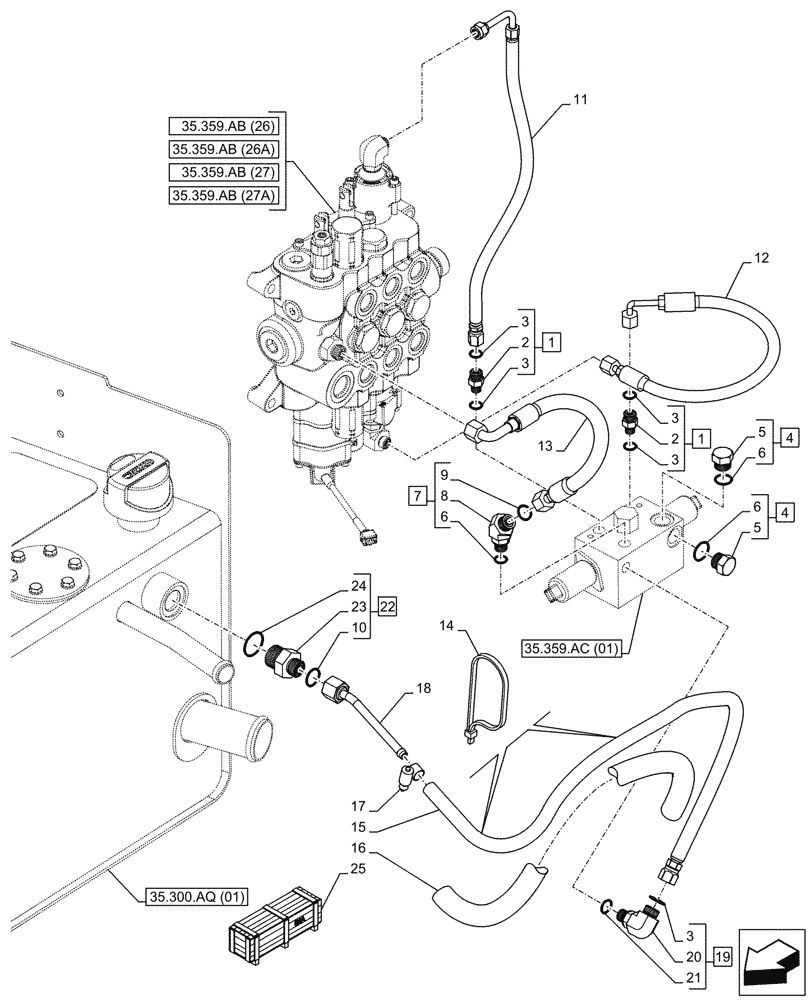

Запчасти Case 580N EP (35.359.AE[07]) - VAR - 747776, 747864 - LOADER, AUXILIARY CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 2 (Qty 1), 3 (Qty 2)

2шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

4

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 6 (Qty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87662930

HYDRAULIC HOSE,6.3mm ID x 534mm L

K Port

1шт.

12

87662928

HYDRAULIC HOSE,6.3mm ID x 387mm L

I Port to Loader

1шт.

13

84391231

HYDRAULIC HOSE,10mm ID x 387mm L

EH Pressure

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

15

47609683

HYDRAULIC HOSE,10mm ID x 905mm

to Oil Tank

1шт.

16

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

1шт.

17

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

18

84325520

TUBE

Return, 128.5mm

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 3 (Qty 1), 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 19

1шт.

21

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

22

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 10, 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 24

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

25

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 24

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
