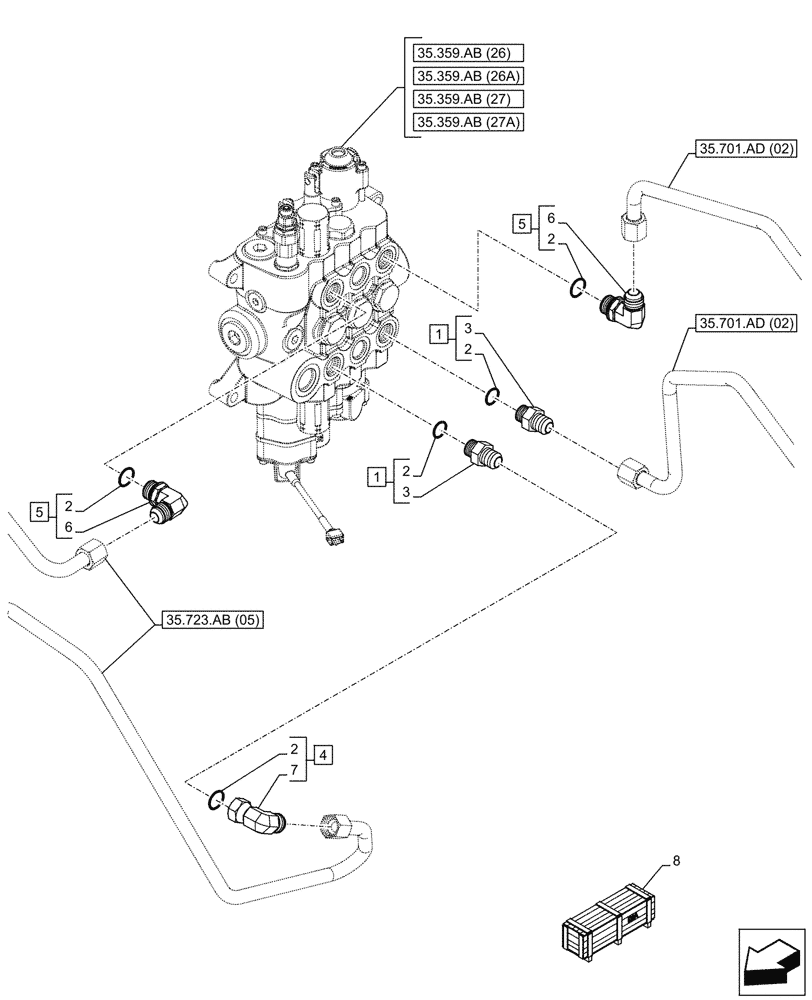

Запчасти Case 580N EP (35.359.AE[06]) - VAR - 747776, 747864 - LOADER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

ASSY, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

4

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ASSY, Incl 2 (Qty 1), 7

1шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

ASSY, Incl 2 (Qty 1), 6 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

2шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

8

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 3, 5, 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 3, 5, 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
