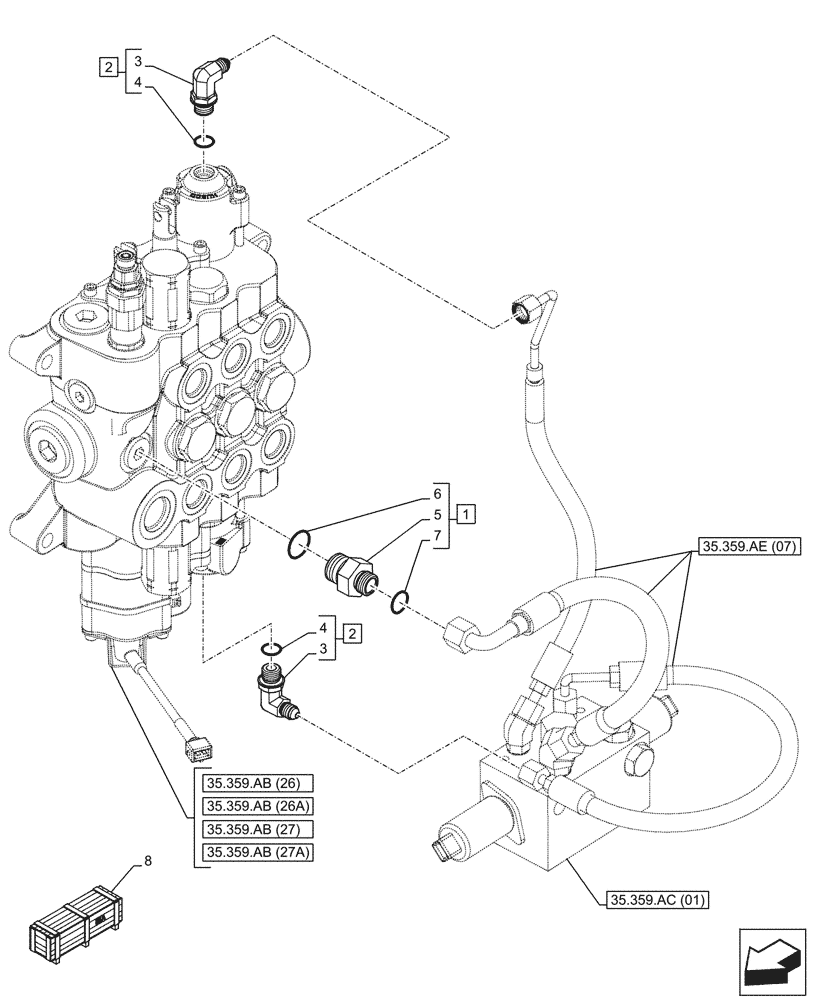

Запчасти Case 580N EP (35.359.AE[05]) - VAR - 747776, 747864 - LOADER, AUXILIARY CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

84139327

HYD CONNECTOR

ASSY, Incl 5 - 7

1шт.

2

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
