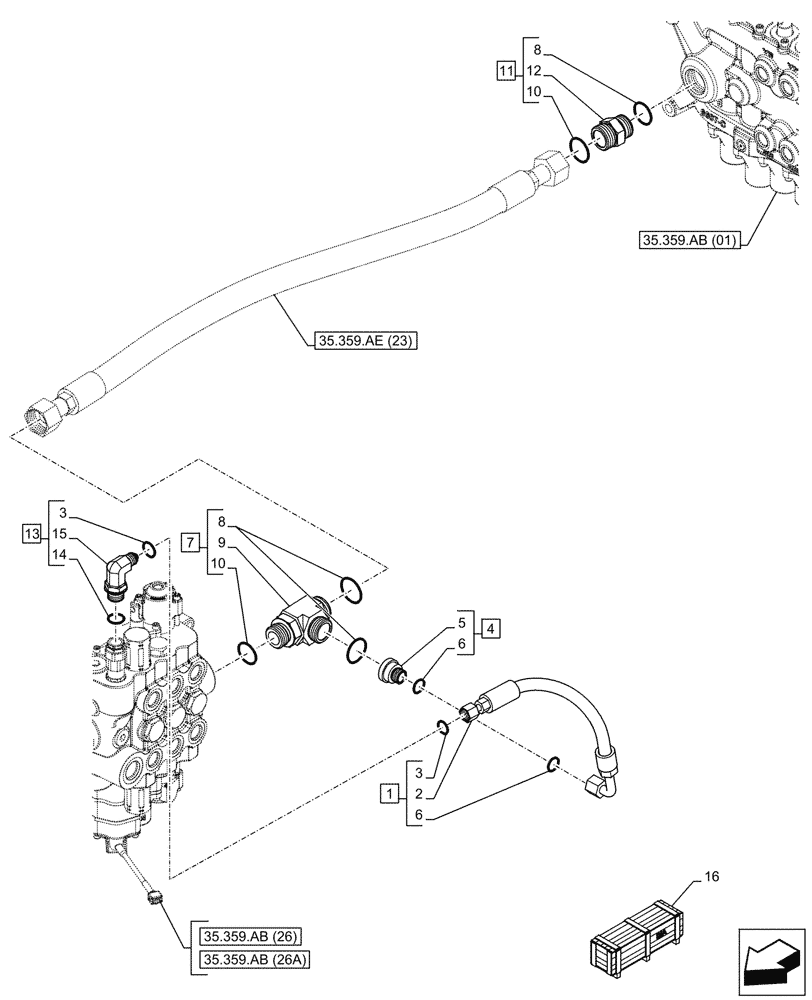

Запчасти Case 580N EP (35.359.AE[04]) - VAR - 747776 - LOADER, CONTROL VALVE LINE, BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47609144

HYDRAULIC HOSE,10mm ID x 375mm L

ASSY, Dual Stage Relief, Incl 2, 3, 6 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

87016874

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Reducer, Incl in 4

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

84238740

FITTING

ASSY, Incl 8 (Qty 2), 9, 10 (Qty 1)

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Connector, Incl 8 (Qty 1), 10 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

47732246

ELBOW UNION

Incl 3, 14, Years: -25-APR-16

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 13

1шт.

16

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 10, 13 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
