Запчасти Case 580N EP (35.359.AC[01]) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE (35) - HYDRAULIC SYSTEMS

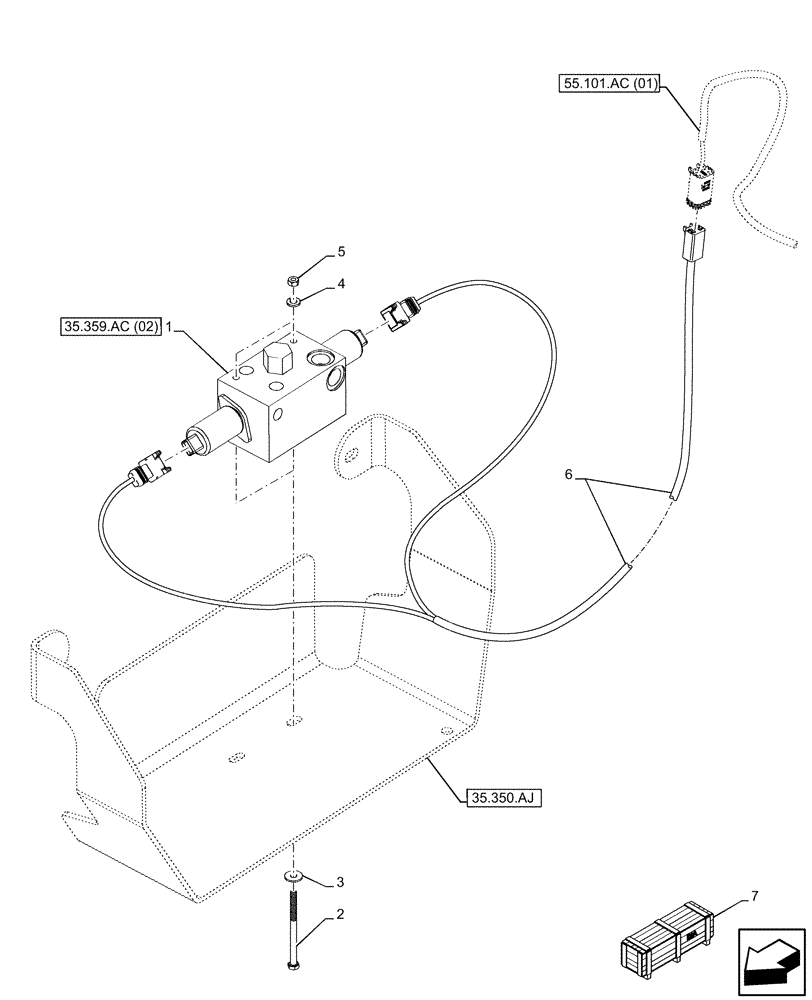

Схема запчастей Case 580N EP - (35.359.AC[01]) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.350.aj
4
6
3
1
2
5
7
55.101.ac (01)
35.359.ac (02)

Артикул

Название

Примечание

Количество

1

47765053

CONTROL VALVE

Proportional, 4x1 and 6x1 Clam Bucket

1шт.

2

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

892-11006

LOCK WASHER,M6

2шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

87651975

WIRE HARNESS

1шт.

7

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 10
