Запчасти Case 580N EP (35.359.AB[51]) - VAR - 747776, 747864 - CONTROL VALVE, MECHANICAL, CHECK VALVE (35) - HYDRAULIC SYSTEMS

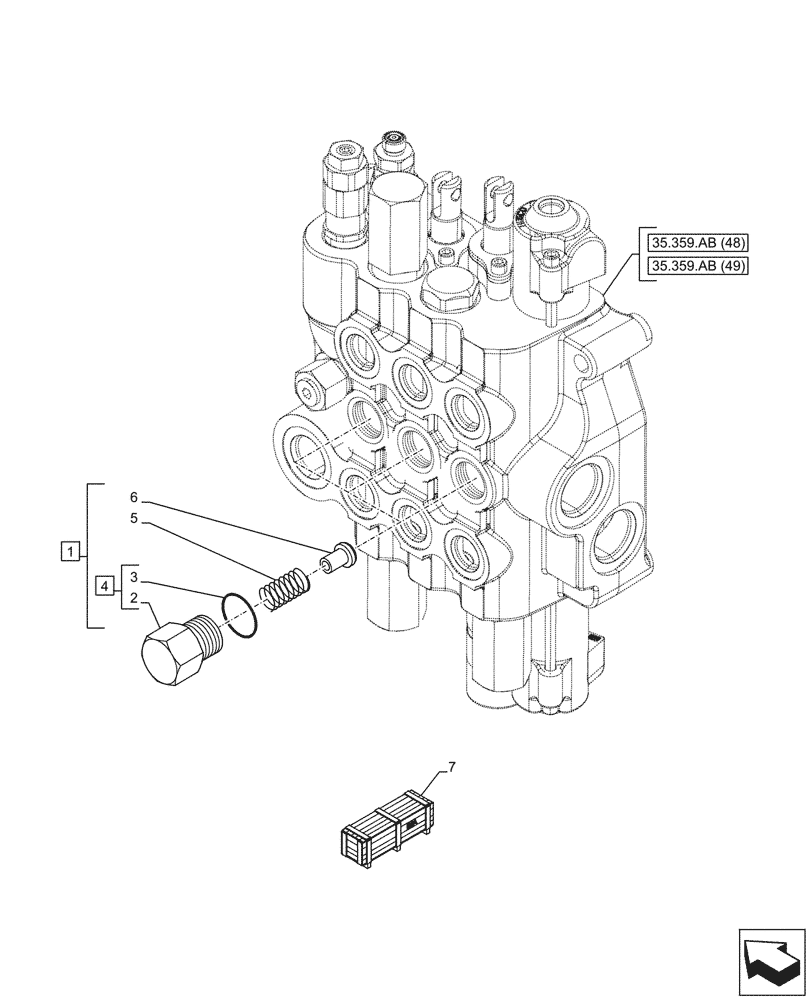

Схема запчастей Case 580N EP - (35.359.AB[51]) - VAR - 747776, 747864 - CONTROL VALVE, MECHANICAL, CHECK VALVE (35) - HYDRAULIC SYSTEMS
35.359.ab (49)
4
1
5
7
2
6
3
35.359.ab (48)

Артикул

Название

Примечание

Количество

1

87426238

VALVE, CHECK

ASSY, Incl 2 - 6

3шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

3шт.

3

87455975

O-RING

3шт.

4

87455581

PLUG,Hex, 1/16" - 12 ORB

ASSY, Incl 2, 3

3шт.

5

87455582

SPRING

3шт.

6

87455583

VALVE POPPET

3шт.

7

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 10
