(35.359.AB[50]) - VAR - 747776, 747864 - CONTROL VALVE, DETENT

Запчасти Case 580N EP (35.359.AB[50]) - VAR - 747776, 747864 - CONTROL VALVE, DETENT (35) - HYDRAULIC SYSTEMS

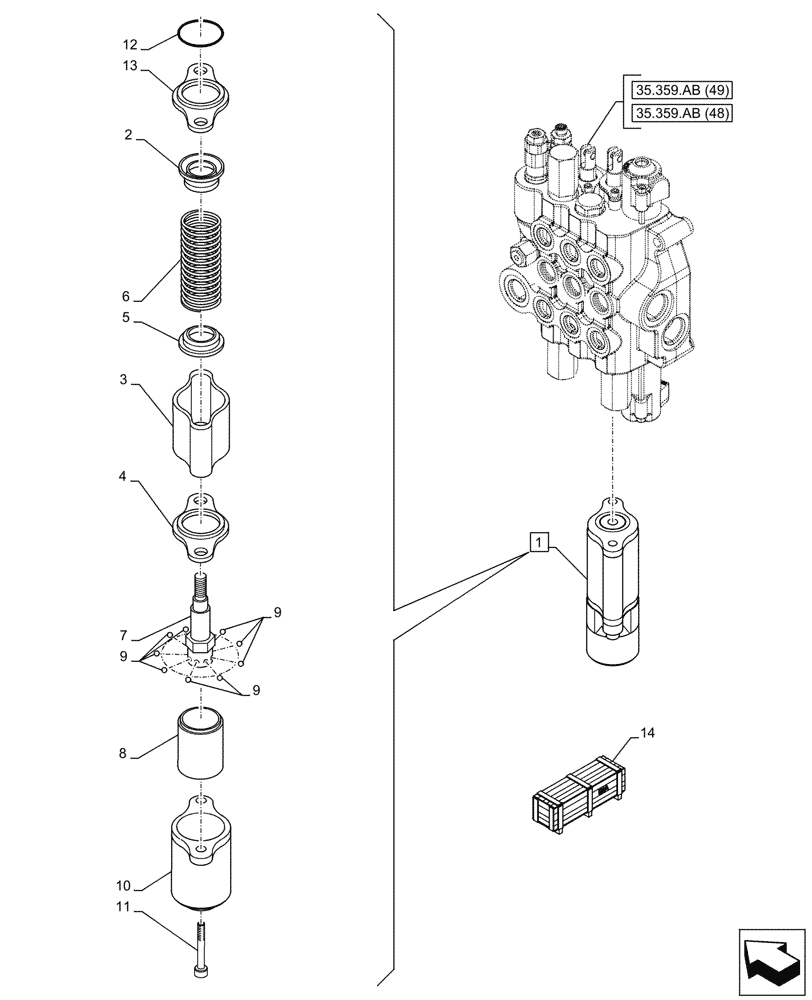

Схема запчастей Case 580N EP - (35.359.AB[50]) - VAR - 747776, 747864 - CONTROL VALVE, DETENT (35) - HYDRAULIC SYSTEMS
35.359.ab (49)
10
3
9
2
7
13
9
1
5
9
4
12
14
6
11
8
35.359.ab (48)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87426227

DETENT

ASSY, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

9

87310276

BALL BEARING

4шт.

10

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

11

87310275

SCREW

2шт.

12

87454547

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

14

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
