Запчасти Case 580N EP (35.359.AB[48]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3 SPOOL - BEGIN YR 26-APR-2016 (35) - HYDRAULIC SYSTEMS

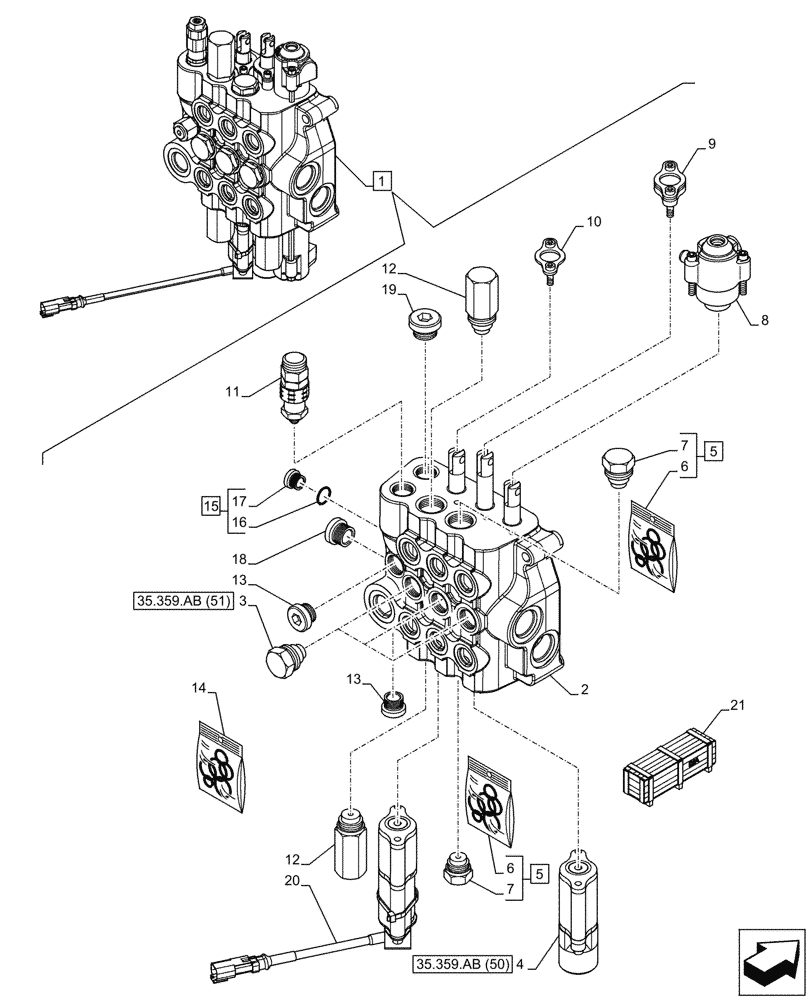

Схема запчастей Case 580N EP - (35.359.AB[48]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3 SPOOL - BEGIN YR 26-APR-2016 (35) - HYDRAULIC SYSTEMS
35.359.ab (50)
20
15
19
12
11
6
1
18
6
16
9
12
7
21
2
7
17
14
4
13
13
5
5
8
10
3
35.359.ab (51)

Артикул

Название

Примечание

Количество

1

47907471

VALVE

Loader 3 Spool, Mechanical Control ASSY, Incl 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

87426238

VALVE, CHECK

ASSY

3шт.

4

87426227

DETENT

ASSY

1шт.

5

81868381

CHECK VALVE,1-1/16" - 12

12 Anti Void, ASSY, Incl in 6, 7

2шт.

6

87455580

O-RING KIT

2шт.

7

NSS

NOT SOLD SEPARAT

Anti Void, Incl in 5

2шт.

8

87757931

END

1шт.

9

84327674

KIT

Seal Plate

1шт.

10

84315193

SEAL

1шт.

11

84327668

VALVE PRESSURE RELIE,7/8" - 14

1шт.

12

47537935

VALVE PRESSURE RELIE,221 Bar

2шт.

13

87363628

PLUG,1 - 5/16" - 12

2шт.

14

84296788

SEAL KIT

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

ASSY, Incl 16, 17

1шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

20

84296814

KIT

Return to Dig

1шт.

21

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1 - 20

2шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
