Запчасти Case 580N EP (35.359.AB[47A]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, EXTENDABLE DIPPER, W/ FOOT SWING CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS

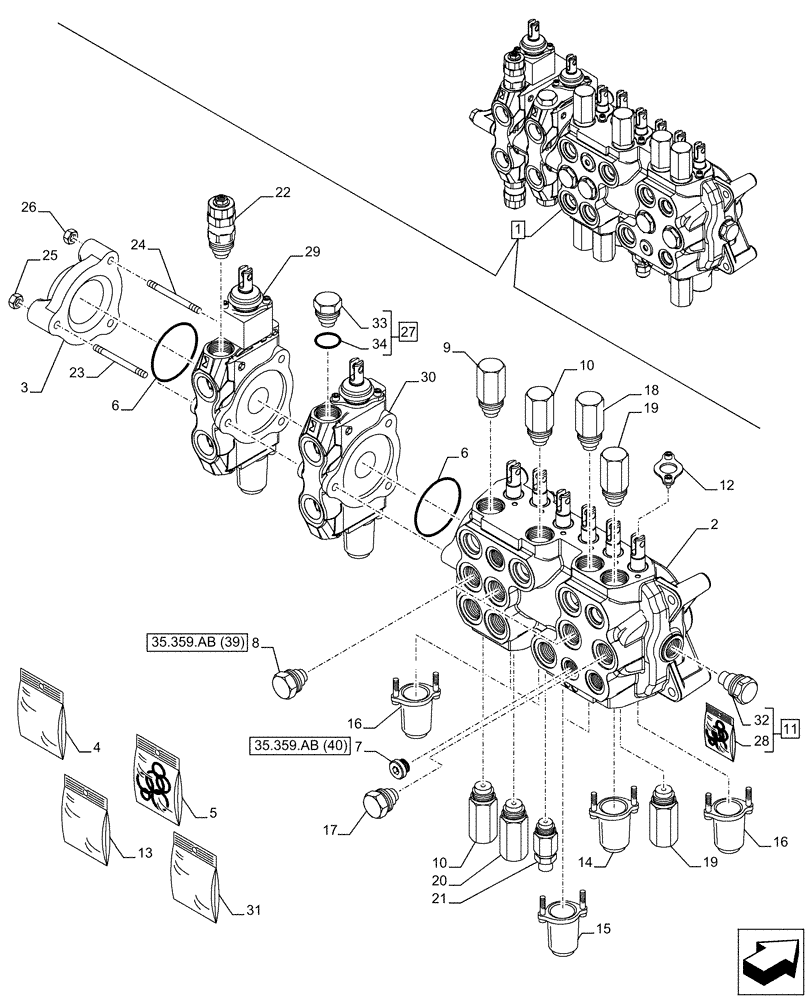

Схема запчастей Case 580N EP - (35.359.AB[47A]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, EXTENDABLE DIPPER, W/ FOOT SWING CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS
35.359.ab (39)
9
21
31
19
13
6
28
30
17
10
20
26
29
25
1
27
2
6
16
12
32
22
14
5
4
16
3
15
24
11
19
18
34
23
8
33
10
7
35.359.ab (40)

Артикул

Название

Примечание

Количество

1

47578536

VALVE

ASSY, Incl 2 - 34

1шт.

Backhoe Control Valve, 8-Spool, with Extendable Dipper and Foot Swing Controls

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

84276556

SERVICE KIT

ASSY, Bi-Directional Aux Bolt on, Incl 22 - 26, 29

1шт.

5

47537934

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY

1шт.

8

87426238

VALVE, CHECK

ASSY

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

Anti Void, ASSY, Incl 28, 32

1шт.

12

84315193

SEAL

6шт.

13

84276557

SERVICE KIT

Bolt on Backhoe Man Control, ASSY, Incl 23 - 27, 30

1шт.

14

84296862

KIT

Mechanical Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

16

84296859

KIT

Mechanical Backhoe Valve B Port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

47520559

VALVE PRESSURE RELIE

Bi-Aux, 220 Bar

2шт.

23

47538081

TIE-ROD

1шт.

24

47538080

TIE-ROD

2шт.

25

47520611

NUT

1шт.

26

47520609

NUT

2шт.

27

83981068

STOP PLUG,Hex, 1/16 - 12 UN

ASSY, Incl 33, 34

2шт.

28

87455580

O-RING KIT

1шт.

29

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

31

84296861

SERVICE KIT

Foot Swing B Port End Group

1шт.

32

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

33

NSS

NOT SOLD SEPARAT

Plug, Incl in 27

1шт.

34

87308628

PLASTIC RING

1шт.

Выбрано товаров: 35
