Запчасти Case 580N EP (35.359.AB[46A]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, EXTENDABLE DIPPER, W/ TWO LEVER CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS

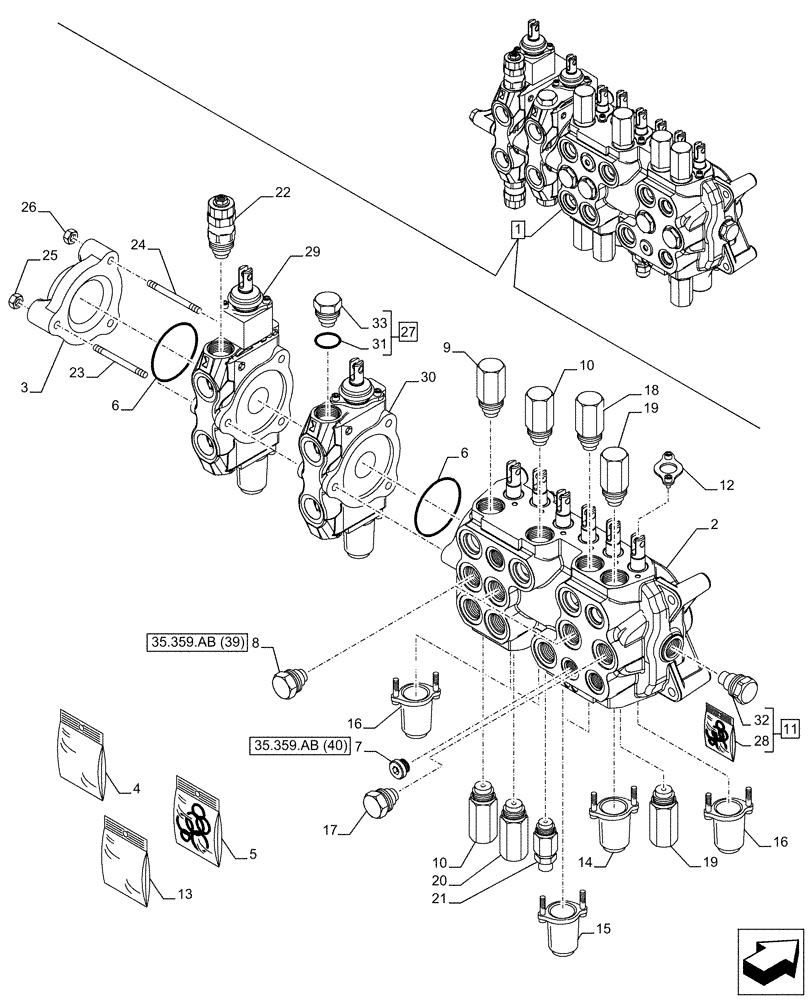

Схема запчастей Case 580N EP - (35.359.AB[46A]) - BACKHOE CONTROL VALVE, 8-SPOOL, COMPONENTS, EXTENDABLE DIPPER, W/ TWO LEVER CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS
35.359.ab (39)
33
28
15
2
29
9
6
13
1
23
10
14
16
16
21
24
32
19
31
7
12
27
5
10
17
3
6
8
26
11
18
25
4
20
19
22
30
35.359.ab (40)

Артикул

Название

Примечание

Количество

1

47578532

VALVE

ASSY, Incl 2 - 33

1шт.

Backhoe Control Valve, 8-Spool, with Extendable Dipper and 2 Lever Controls

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

84276556

SERVICE KIT

ASSY, Bi-Directional Aux Bolt on, Incl 22 - 26, 29

1шт.

5

47537934

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY

1шт.

8

87426238

VALVE, CHECK

ASSY

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

Anti Void, ASSY, Incl 28, 32

1шт.

12

84315193

SEAL

6шт.

13

84276557

SERVICE KIT

Bolt on Backhoe Man Control, ASSY, Incl 23 - 27, 30

1шт.

14

84296862

KIT

Mechanical Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

16

84296859

KIT

Mechanical Backhoe Valve B Port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

47520559

VALVE PRESSURE RELIE

Bi-Aux, 220 Bar

2шт.

23

47538081

TIE-ROD

1шт.

24

47538080

TIE-ROD

2шт.

25

47520611

NUT

1шт.

26

47520609

NUT

2шт.

27

83981068

STOP PLUG,Hex, 1/16 - 12 UN

ASSY, Incl 31, 33

2шт.

28

87455580

O-RING KIT

1шт.

29

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

31

87308628

PLASTIC RING

1шт.

32

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

33

NSS

NOT SOLD SEPARAT

Plug, Incl in 27

1шт.

Выбрано товаров: 34
