Запчасти Case 580N EP (35.359.AB[44A]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, STANDARD DIPPER, W/ TWO LEVER CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS

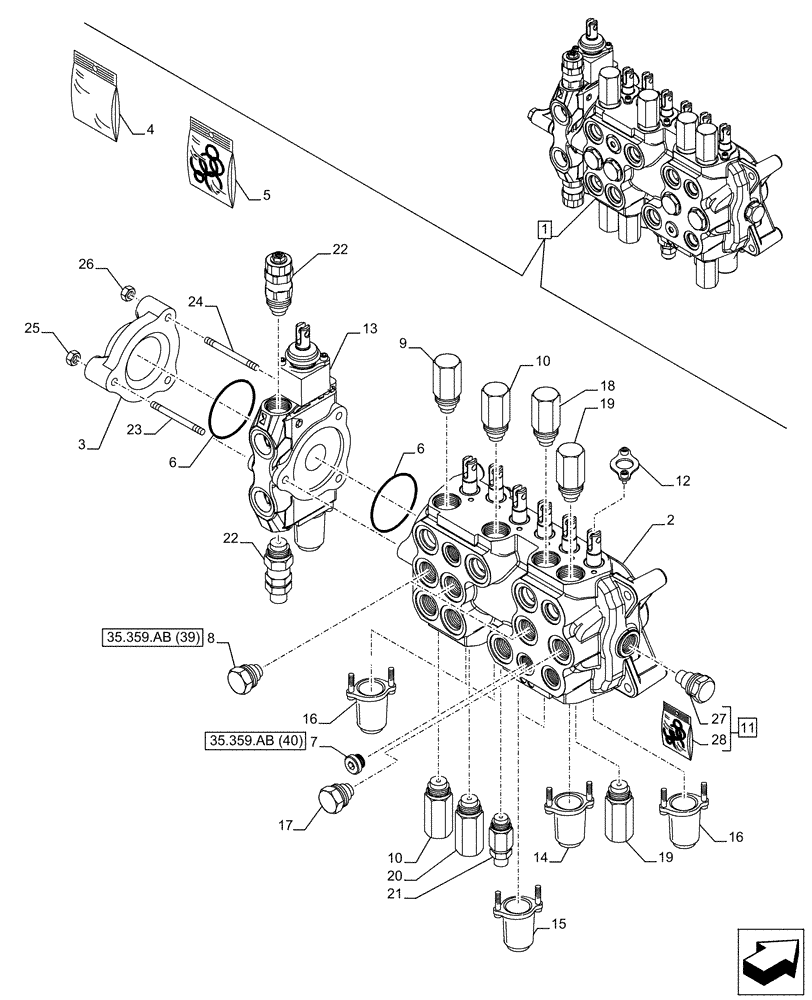

Схема запчастей Case 580N EP - (35.359.AB[44A]) - BACKHOE CONTROL VALVE, 7-SPOOL, COMPONENTS, STANDARD DIPPER, W/ TWO LEVER CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS
35.359.ab (39)
10
5
26
9
1
22
21
23
12
20
4
22
14
28
8
3
15
11
18
19
25
24
16
6
10
2
19
13
17
6
7
16
27
35.359.ab (40)

Артикул

Название

Примечание

Количество

1

47578531

VALVE

ASSY, Incl 2 - 28

1шт.

Backhoe Control Valve, 7-Spool, with STD Dipper and 2 Lever Controls

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

84276556

SERVICE KIT

ASSY, Bi-Directional Aux Bolt on, Incl 13, 22 - 26

1шт.

5

47537934

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY

1шт.

8

87426238

VALVE, CHECK

ASSY

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

Anti Void, ASSY, Incl 27, 28

1шт.

12

84315193

SEAL

6шт.

13

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

14

84296862

KIT

Mechanical Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

16

84296859

KIT

Mechanical Backhoe Valve B Port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

47520559

VALVE PRESSURE RELIE

Bi-Aux, 220 Bar

2шт.

23

47538075

TIE-ROD

1шт.

24

47538074

TIE-ROD

2шт.

25

47520611

NUT

1шт.

26

47520609

NUT

2шт.

27

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

28

87455580

O-RING KIT

1шт.

Выбрано товаров: 29
