Запчасти Case 580N EP (35.359.AB[38A]) - BACKHOE CONTROL VALVE, 6-SPOOL, COMPONENTS, STANDARD DIPPER, W/ FOOT SWING CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS

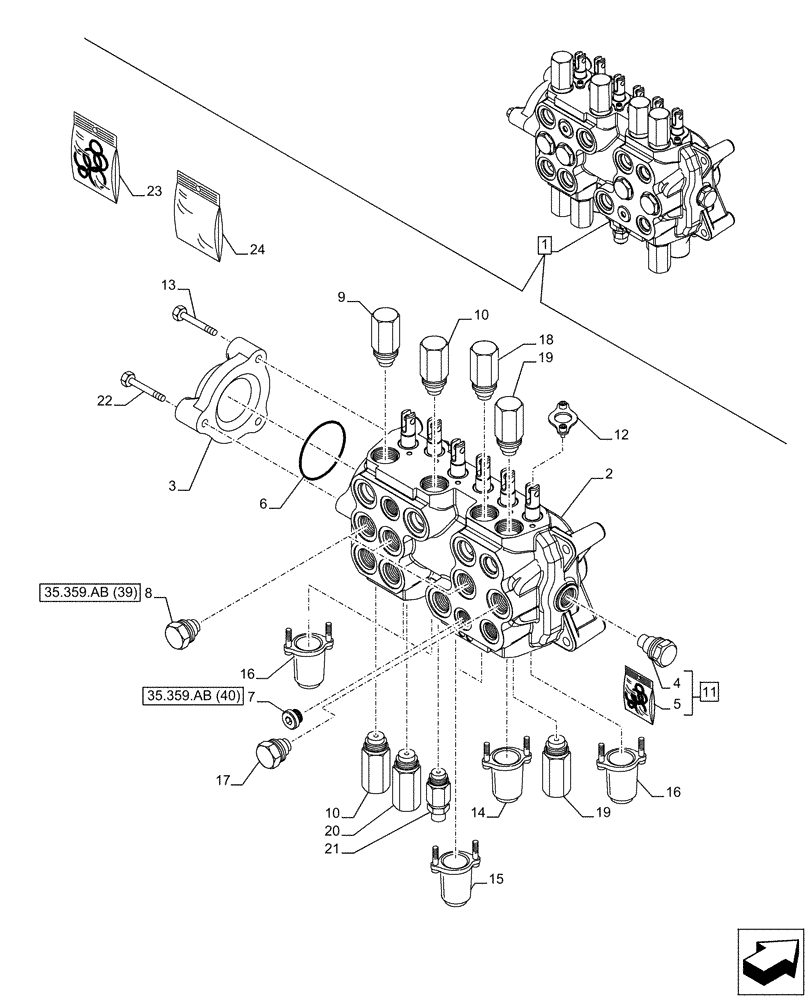

Схема запчастей Case 580N EP - (35.359.AB[38A]) - BACKHOE CONTROL VALVE, 6-SPOOL, COMPONENTS, STANDARD DIPPER, W/ FOOT SWING CONTROLS - BEGIN YR 11-JUL-2015 (35) - HYDRAULIC SYSTEMS
35.359.ab (39)
17
7
10
9
22
16
1
15
10
21
24
3
23
13
19
19
12
14
5
18
20
11
4
16
8
2
6
35.359.ab (40)

Артикул

Название

Примечание

Количество

1

47578533

VALVE

ASSY, Incl 2 - 24

1шт.

47578533R

REMAN-HYD VALVE

Reman Valve ASSY, Incl 2 - 24

1шт.

47578533C

CORE-VALVE HYD

Return Number

1шт.

Backhoe Control Valve, 6-Spool, with STD Dipper and Foot Swing Controls

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

5

87455580

O-RING KIT

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

7

87428486

VALVE, CHECK

ASSY

1шт.

8

87426238

VALVE, CHECK

ASSY

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

Anti Void, ASSY, Incl 4, 5

1шт.

12

84315193

SEAL

6шт.

13

87428491

SCREW,Hex

2шт.

14

84296862

KIT

Mechanical Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

16

84296859

KIT

Mechanical Backhoe Valve B Port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

87428492

SCREW,Hex

1шт.

23

47537934

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

24

84296861

SERVICE KIT

Foot Swing B Port End Group

1шт.

Выбрано товаров: 27
