(35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING

Запчасти Case 580N EP (35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

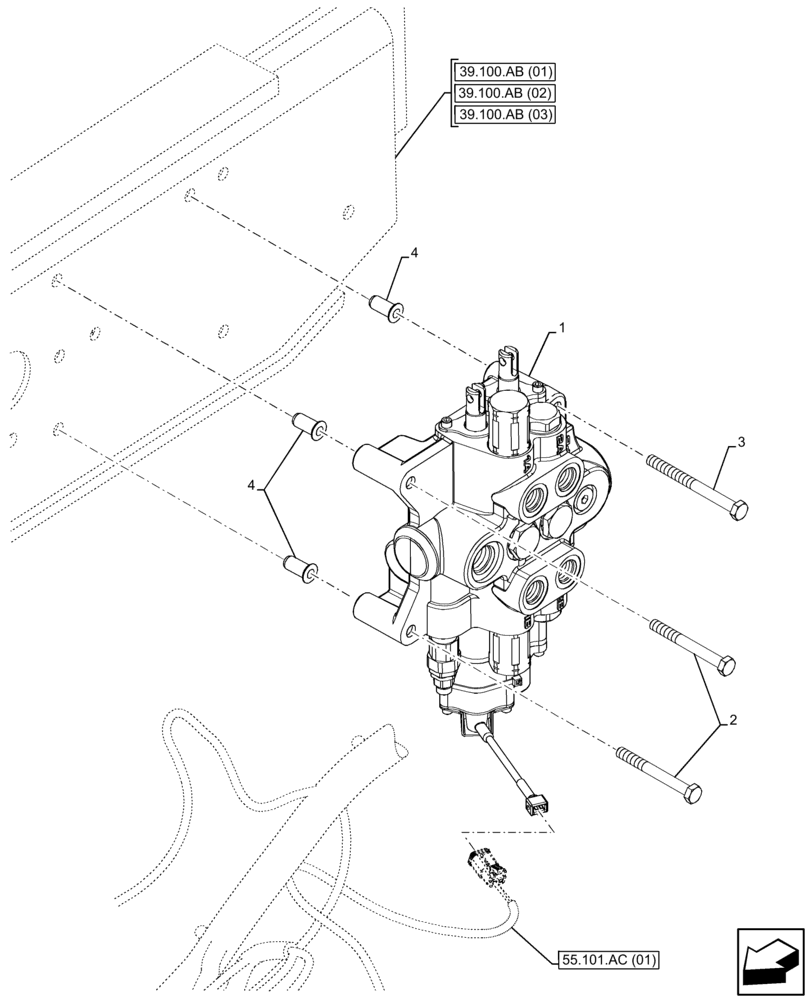

Схема запчастей Case 580N EP - (35.359.AB[28]) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
39.100.ab (02)
2
39.100.ab (03)
4
4
55.101.ac (01)
3
1
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47502267

VALVE

Loader 2 Spool, ASSY

1шт.

2

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

3

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 4
