(35.359.AB[27A]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING - BEGIN YR 26-APR-2016

Запчасти Case 580N EP (35.359.AB[27A]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING - BEGIN YR 26-APR-2016 (35) - HYDRAULIC SYSTEMS

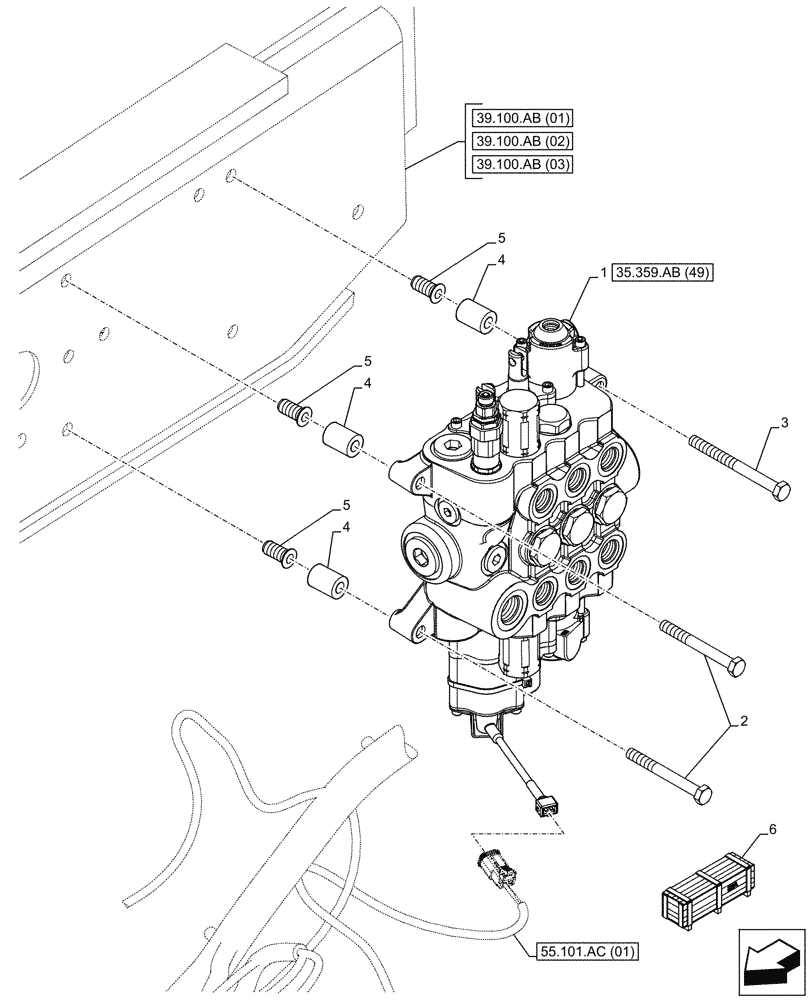

Схема запчастей Case 580N EP - (35.359.AB[27A]) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING - BEGIN YR 26-APR-2016 (35) - HYDRAULIC SYSTEMS
55.101.ac (01)
4
5
5
1
5
2
4
4
6
3
35.359.ab (49)
39.100.ab (01)
39.100.ab (03)
39.100.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47907473

VALVE

Loader 3 Spool, ASSY

1шт.

2

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

3

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

6

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1, 4, 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
