(35.359.AB[26]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING - END YR 25-APR-2016

Запчасти Case 580N EP (35.359.AB[26]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING - END YR 25-APR-2016 (35) - HYDRAULIC SYSTEMS

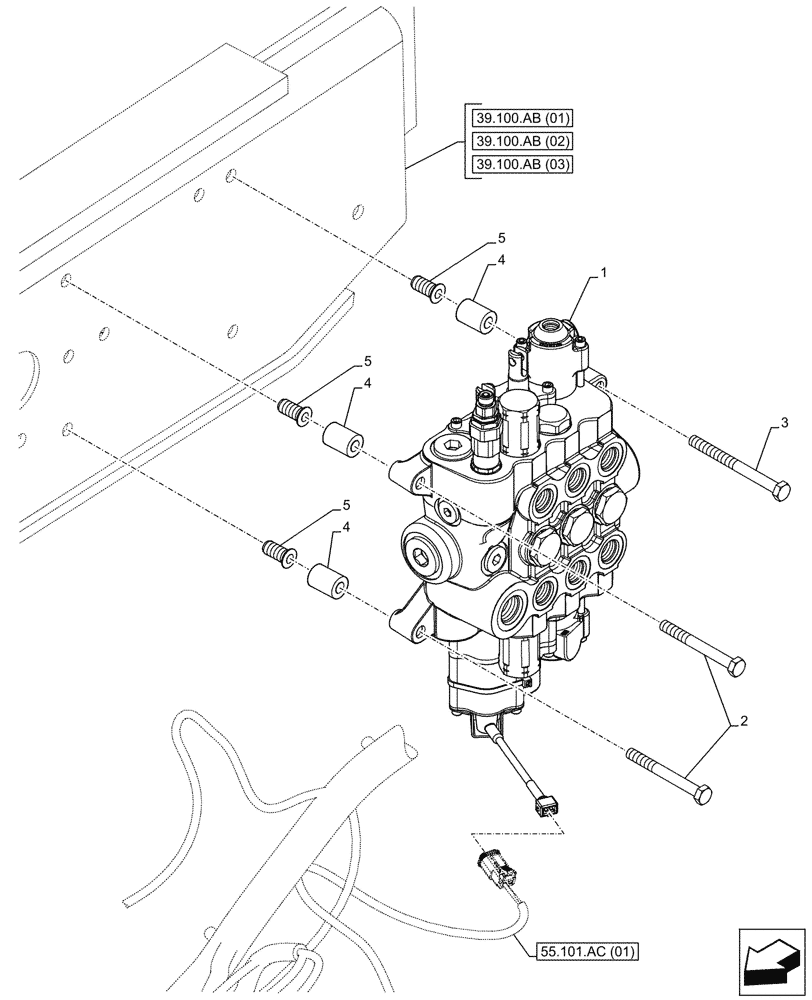

Схема запчастей Case 580N EP - (35.359.AB[26]) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING - END YR 25-APR-2016 (35) - HYDRAULIC SYSTEMS
55.101.ac (01)
5
5
1
4
4
4
2
5
3
39.100.ab (01)
39.100.ab (03)
39.100.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47502269

VALVE

ASSY, Loader 3 Spool, Mechanical Control

1шт.

2

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

3

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 5
