Запчасти Case 580N EP (35.357.AR[03]) - 8-SPOOL, PRESSURE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

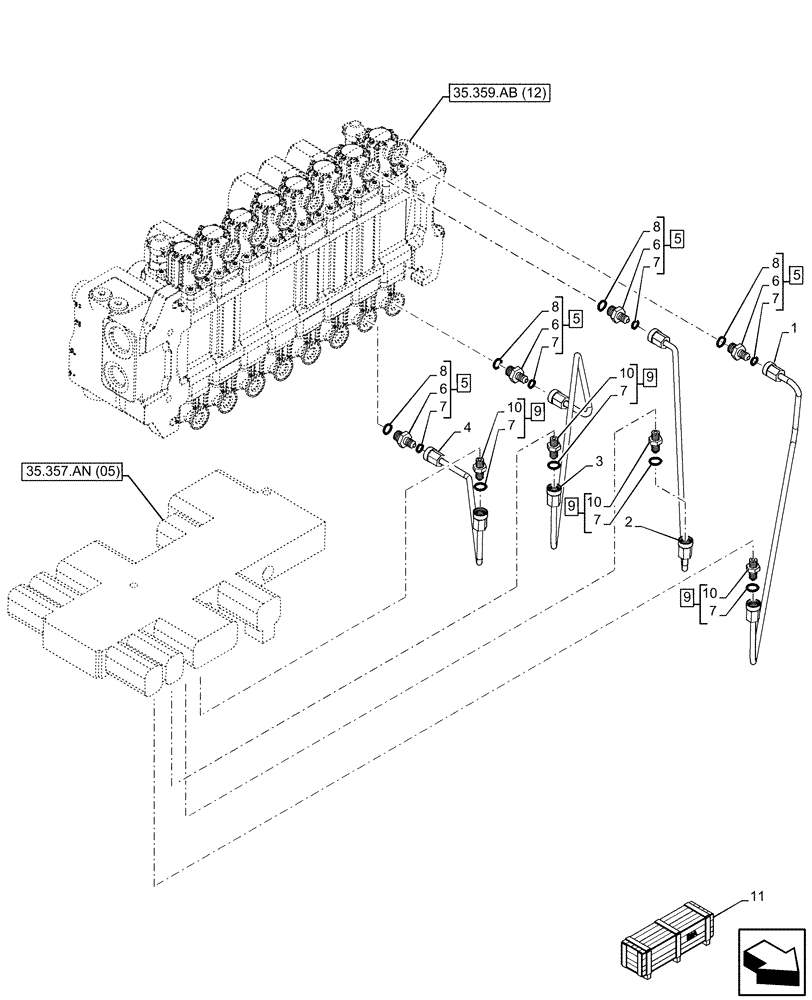

Схема запчастей Case 580N EP - (35.357.AR[03]) - 8-SPOOL, PRESSURE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.357.an (05)
7
7
4
11
8
5
5
5
6
6
7
7
7
7
3
10
8
9
8
1
9
9
8
6
2
6
10
7
10
7
10
9
5
35.359.ab (12)

Артикул

Название

Примечание

Количество

1

87440837

HYD TUBE

1шт.

2

87437635

HYD TUBE

From Reducing Valve to EXT A

1шт.

3

87440835

HYD TUBE

1шт.

4

87437633

HYD TUBE

From Reducing Valve to EXT A

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

4шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

4шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

8шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 7 (Qty 1), 10 (Qty 1)

4шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

4шт.

11

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1, 3, 5 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1, 3, 5 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 14
