Запчасти Case 580N EP (35.357.AR[01]) - 7-SPOOL, PRESSURE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

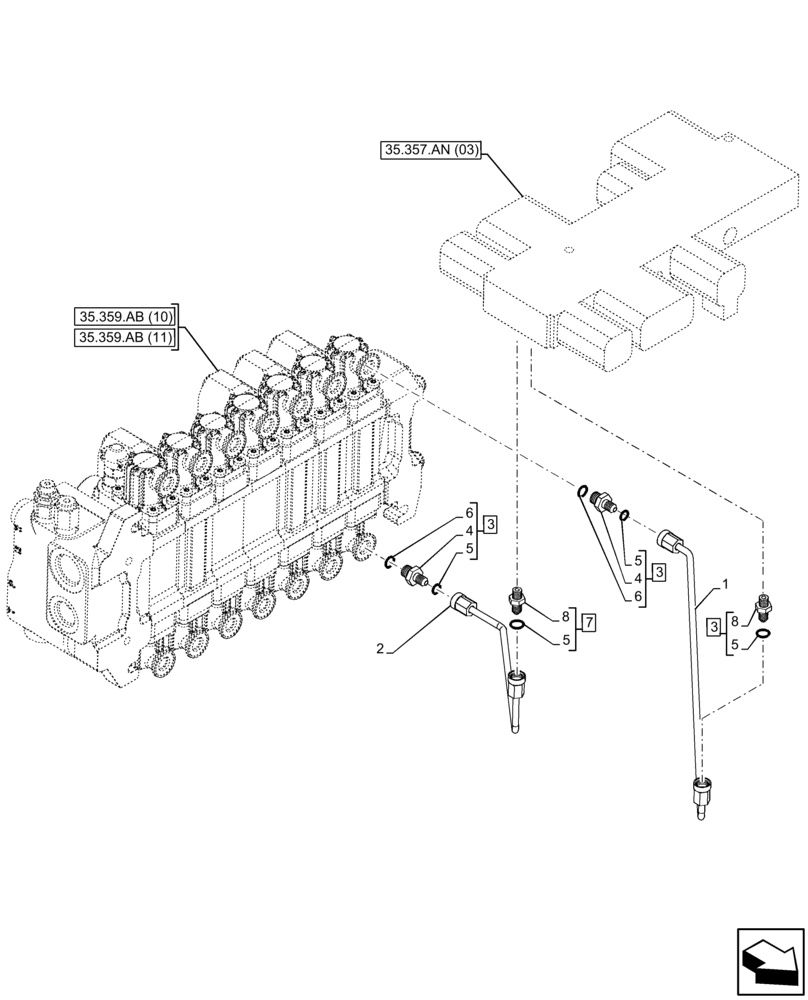

Схема запчастей Case 580N EP - (35.357.AR[01]) - 7-SPOOL, PRESSURE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS
8
5
1
5
35.359.ab (10)
6
4
3
2
35.357.an (03)
8
7
35.359.ab (11)
3
4
6
5
5
3

Артикул

Название

Примечание

Количество

1

87437635

HYD TUBE

from Reducing Valve to EXT A

1шт.

2

87437633

HYD TUBE

from Reducing Valve to EXT B

1шт.

3

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 5 (Qty 1), 8 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

Выбрано товаров: 8
