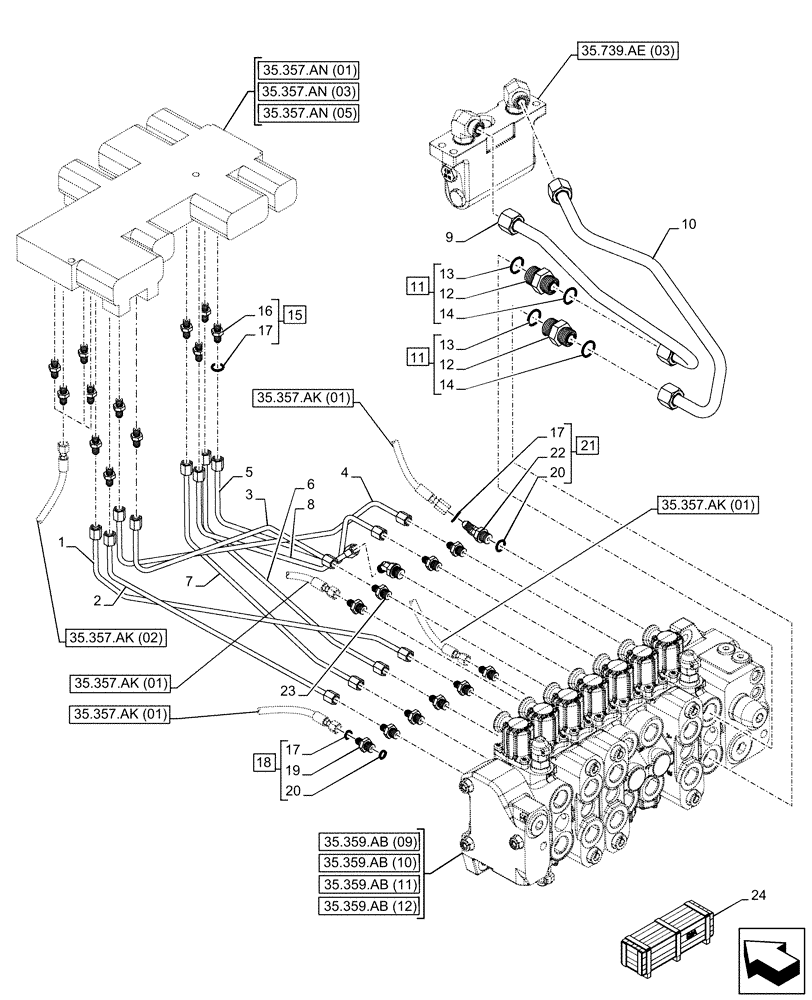

Запчасти Case 580N EP (35.357.AO[02]) - VAR - 747669 - BACKHOE ARM, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS

1

87439213

HYD TUBE

Selector A3 to Boom B

1шт.

2

87437621

TUBE,.25" OD

Selector A1 to Dipper B

1шт.

3

87437623

TUBE,.25" OD

Selector A2 to Dipper A

1шт.

4

87439215

HYD TUBE

Selector A4 to Boom A

1шт.

5

87437627

HYD TUBE

Reducing Valve to LH Stabilizer A

1шт.

6

87437625

HYD TUBE

Reducing Valve to LH Stabilizer B

1шт.

7

87437629

HYD TUBE

Reducing Valve to RH Stabilizer B

1шт.

8

87445557

HYD TUBE

Reducing Valve to RH Stabilizer A

1шт.

9

84332788

HYD TUBE

Swing Damp Top Port

1шт.

10

84332787

HYD TUBE

Swing Damp Bottom Port

1шт.

11

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

15

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 16 (Qty 1), 17 (Qty 1)

12шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

12шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

23шт.

18

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 17 (Qty 1), 19 (Qty 1), 20 (Qty 1)

9шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

9шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

11шт.

21

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ASSY, Incl 17 (Qty 1), 20 (Qty 1), 22 (Qty 1)

2шт.

22

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 21

2шт.

23

87423401

FITTING,1/4" JIC x 3/8" ORB

Special Orifice Pilot

1шт.

24

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 10, 15, 16, 18, 19, 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
