Запчасти Case 580N EP (35.357.AN[06]) - 8-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

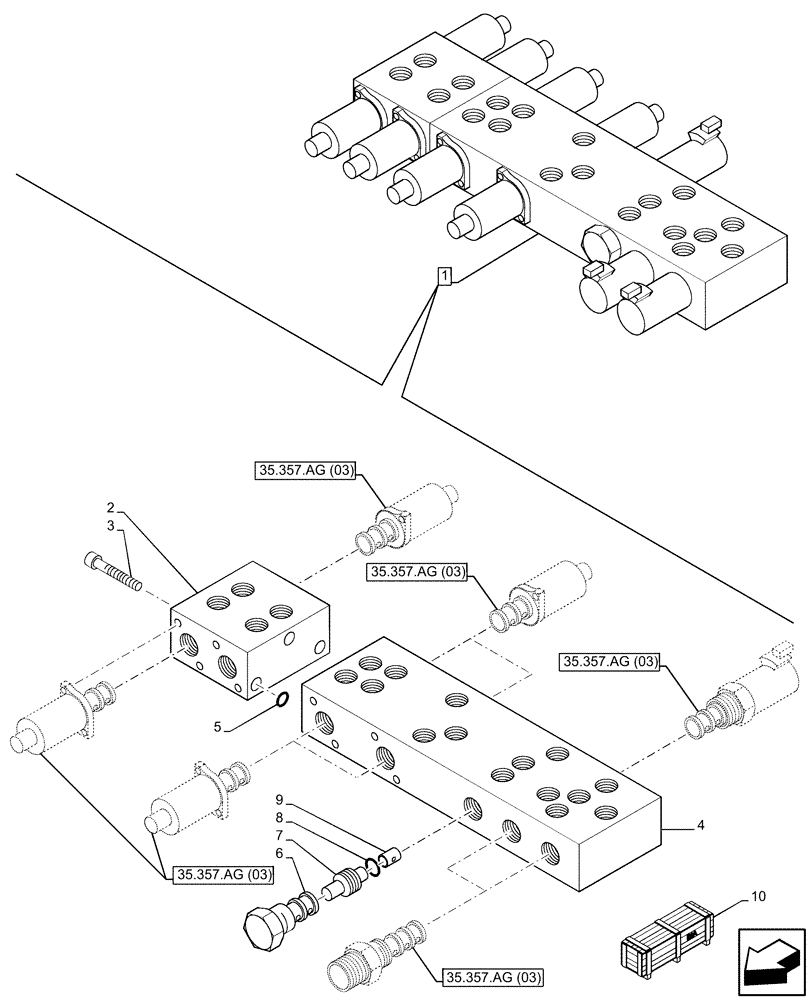

Схема запчастей Case 580N EP - (35.357.AN[06]) - 8-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
35.357.ag (03)
5
1
6
7
4
8
3
2
9
10
35.357.ag (03)
35.357.ag (03)
35.357.ag (03)
35.357.ag (03)

Артикул

Название

Примечание

Количество

1

47765047

PILOT VALVE

ASSY, 4 Section with Pattern Select, Incl 2 - 9

1шт.

See Pilot Valve Components also in Figure 35.357.AG (03)

1шт.

2

85828048

MANIFOLD VALVE

2-Function Block

1шт.

Extension Block added for Optional Extendahoe and Bi-Dir Aux Functions

1шт.

3

85828061

SCREW,M5 x 80mm

3шт.

4

NSS

NOT SOLD SEPARAT

2-Function Block, Incl in 1

1шт.

5

85827999

SEAL KIT

1шт.

6

47761898

VALVE, PRESSURE CONT

Fixed Pressure Reducing

1шт.

7

85827992

CHECK VALVE

1шт.

8

85828003

O-RING,1mm Thk x 9mm ID

1шт.

9

85828005

ORIFICE

1шт.

10

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
