Запчасти Case 580N EP (35.357.AN[04]) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

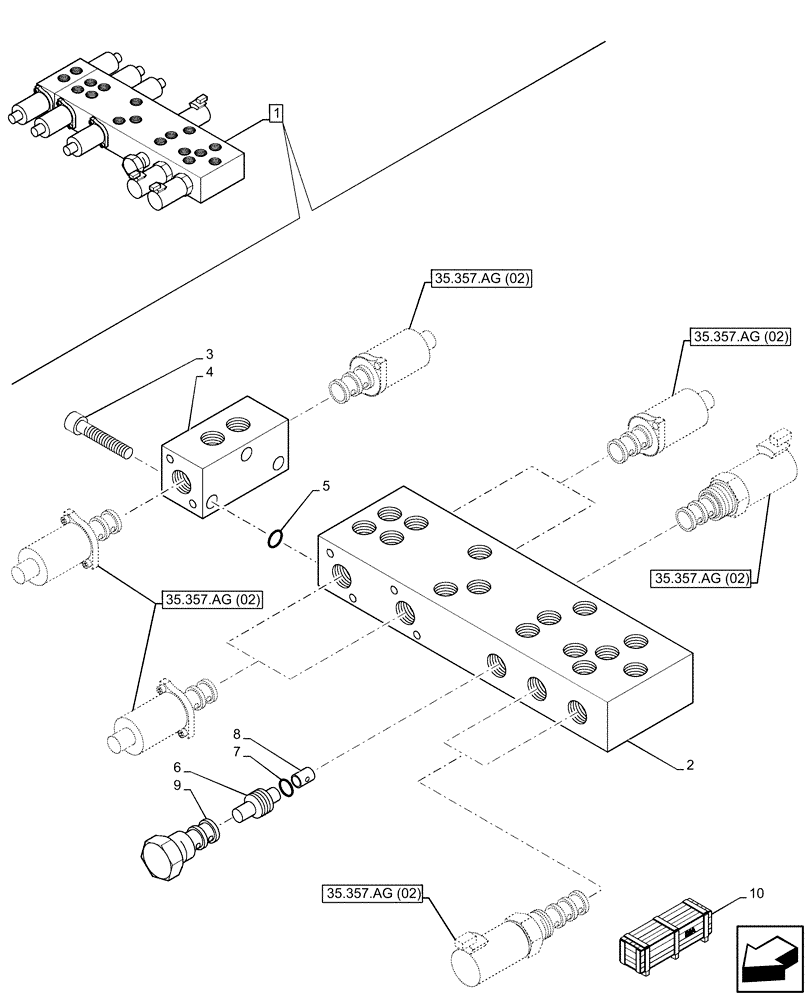

Схема запчастей Case 580N EP - (35.357.AN[04]) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
35.357.ag (02)
9
5
7
2
3
10
4
8
6
1
35.357.ag (02)
35.357.ag (02)
35.357.ag (02)
35.357.ag (02)

Артикул

Название

Примечание

Количество

1

47765051

PILOT VALVE

ASSY, Proportional Pilot Pressure, Incl 2 - 9

1шт.

See Control Valve Components also in Figure 35.357.AG (02)

1шт.

2

NSS

NOT SOLD SEPARAT

2 Function Block Manifold, Incl in 1

1шт.

3

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

4

85828004

BODY

1 Function

1шт.

Extension Block added for Optional Extendahoe

1шт.

5

85827999

SEAL KIT

1шт.

6

85827992

CHECK VALVE

1шт.

7

85828003

O-RING,1mm Thk x 9mm ID

1шт.

8

85828005

ORIFICE

1шт.

9

47761898

VALVE, PRESSURE CONT

Fixed Reducing

1шт.

10

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3, 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47661834

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 3, 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
