Запчасти Case 580N EP (35.357.AG[03]) - 8-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID (35) - HYDRAULIC SYSTEMS

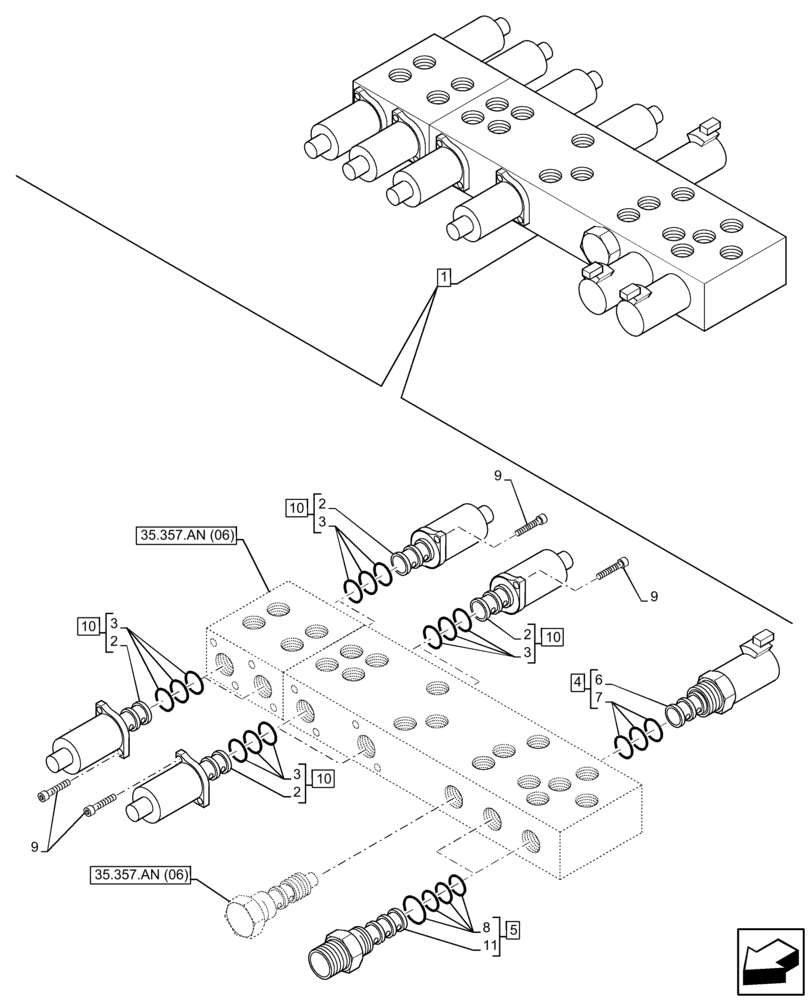

Схема запчастей Case 580N EP - (35.357.AG[03]) - 8-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID (35) - HYDRAULIC SYSTEMS
2
9
2
4
8
3
10
10
1
2
35.357.an (06)
5
35.357.an (06)
6
3
9
9
3
3
10
2
11
7
10

Артикул

Название

Примечание

Количество

1

47765047

PILOT VALVE

ASSY, 4 Section with Pattern Select, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

8шт.

3

85828000

SEAL KIT

8шт.

4

85827994

SOLENOID VALVE

ASSY, 3W-2P, Incl 6, 7

1шт.

Joystick Enable Solenoid

1шт.

5

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 8 (Qty 1), 11 (Qty 1)

2шт.

Pattern Change Solenoids

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

1шт.

7

85827998

SEAL KIT

1шт.

8

85828002

SEAL KIT

2шт.

9

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

10

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 2 (Qty 1), 3 (Qty 1)

8шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract/Extend PWM, Bi-Dir Aux A/B Port PWM

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

2шт.

Выбрано товаров: 14
