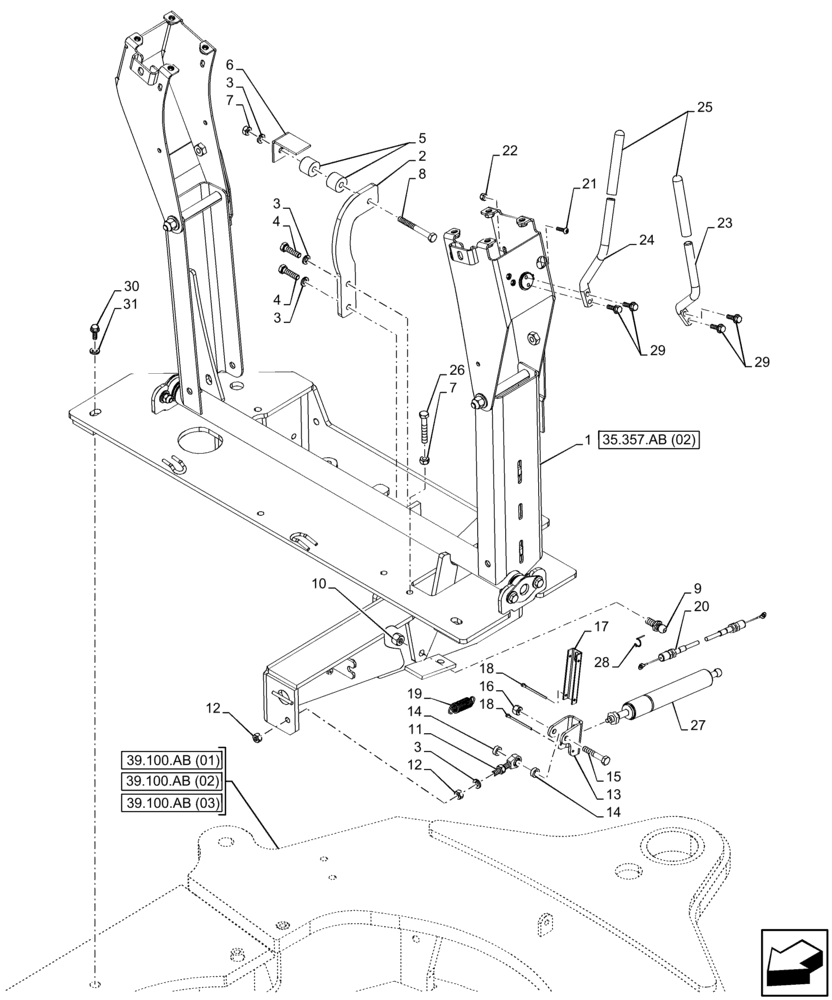

Запчасти Case 580N EP (35.357.AB[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, SUPPORT (35) - HYDRAULIC SYSTEMS

1

87440711

TOWER

ASSY, Pilot Control

1шт.

2

86984544

BRACKET

Guide Block

1шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

5

86984547

GUIDE

2шт.

6

86984545

BRACKET

Guide Block Retaining Boom Latch Cable

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

9

85824067

BALL STUD,M10 x 1.5mm x 39mm L

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

85824081

BALL JOINT,7.94mm ID x 47.6mm L

1шт.

12

425-115

NUT,5/16"-24, G5

2шт.

13

85824080

BEZEL

1шт.

14

85821520

SPACER,8.3mm ID x 14.3mm OD x 5.3mm L

2шт.

15

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

16

231-1445

NUT,5/16"-18, GB

1шт.

17

86984549

CHANNEL

1шт.

18

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

19

87443692

SPRING,Extension, 16.5mm OD x 54.8mm L

1шт.

20

87437806

FLEXIBLE CABLE,1036mm L

1шт.

21

140-108

SCREW,Cross Pan Hd, #10 - 24 x 3/4"

1шт.

22

231-14409

NUT,#10-24, GB

1шт.

23

87418368

ROD,12.7mm OD

Tower Stationary

1шт.

24

87418369

ROD,12.7mm OD

Tower Position

1шт.

25

87442409

GRIP

2шт.

26

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

27

86989616

GAS STRUT

1шт.

28

3233348R1

CLIP

1шт.

29

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

30

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

31

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.
