Запчасти Case 580N EP (35.357.AA) - AUXILIARY CONTROL VALVE, PILOT ACCUMULATOR (35) - HYDRAULIC SYSTEMS

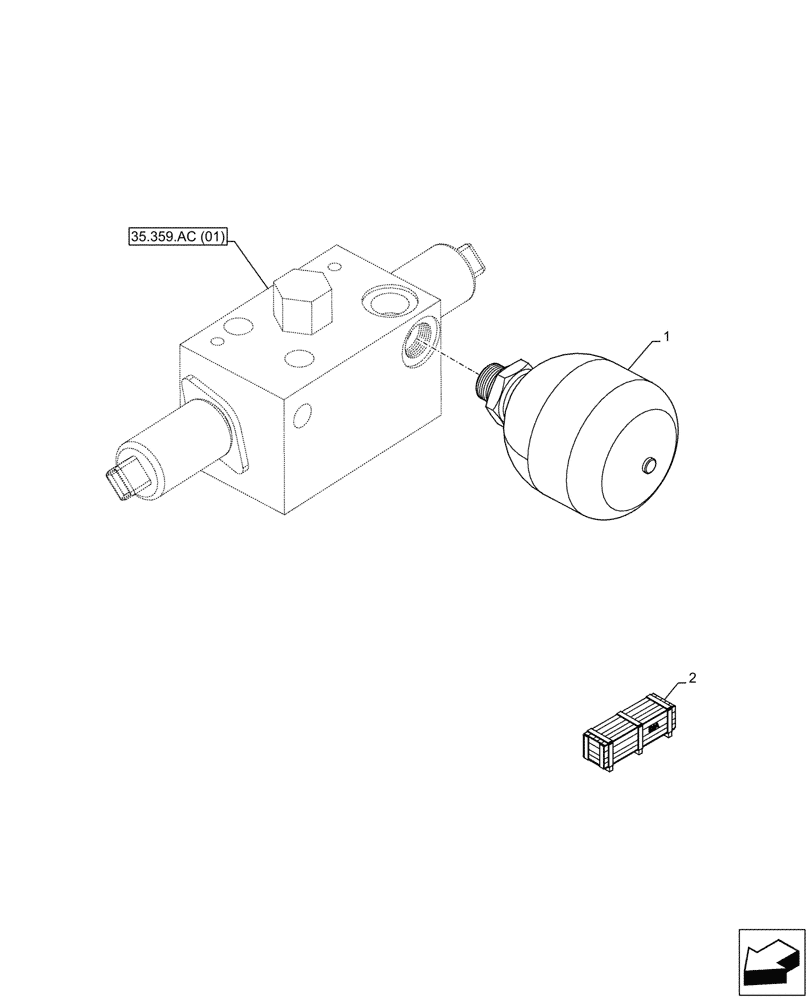

Схема запчастей Case 580N EP - (35.357.AA) - AUXILIARY CONTROL VALVE, PILOT ACCUMULATOR (35) - HYDRAULIC SYSTEMS
35.359.ac (01)
2
1

Артикул

Название

Примечание

Количество

1

87425225

ACCUMULATOR,0.16L

Pre Charge Pressure 7 Bar

1шт.

2

47661814

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1

1шт.

Valid for 580N EP Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1

1шт.

Valid for 580N EP Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661818

CONSTRUCTION DIA

3 Spool, Pilot Control, Standard Transmission, Incl 1

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661747

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661783

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 28
