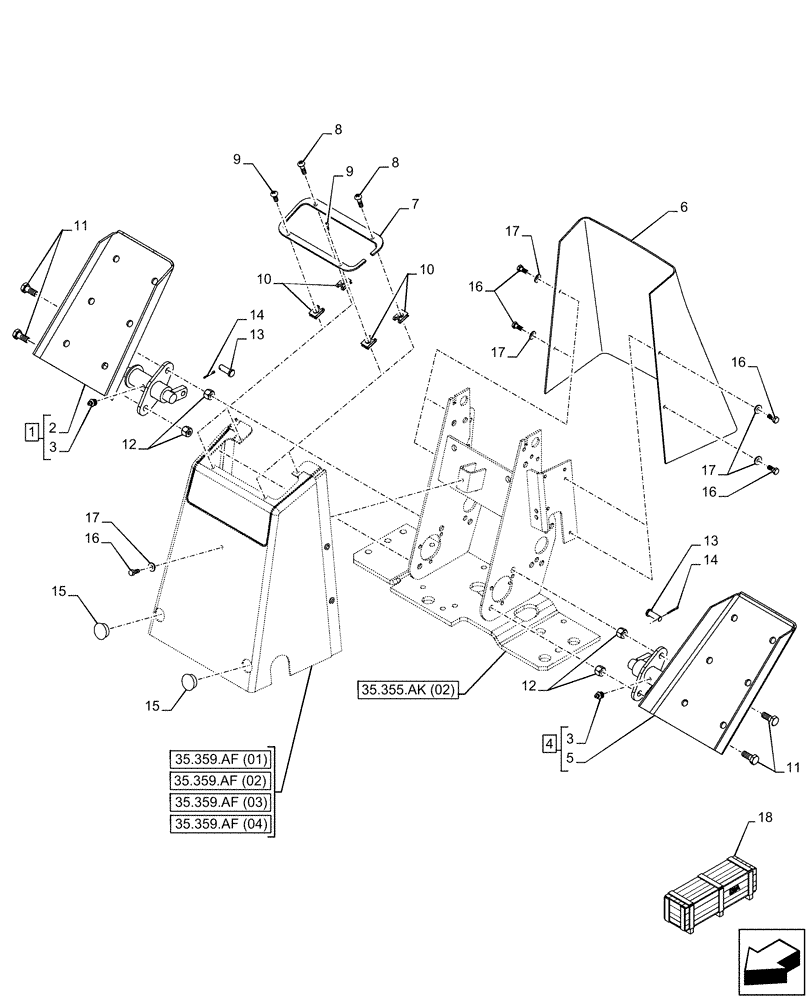

Запчасти Case 580N EP (35.356.AW[02]) - BACKHOE ARM, MECHANICAL CONTROL, FOOT SLEWING/SWING (35) - HYDRAULIC SYSTEMS

1

136271A2

PEDAL

ASSY, Swing LH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal, Incl in 1

1шт.

3

219-4

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

136270A2

PEDAL

ASSY, Swing RH, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Pedal, Incl in 4

1шт.

6

390759A1

COVER

Rear Backhoe Console 2 Lever

1шт.

7

136822A1

RETAINER

1шт.

8

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

9

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

2шт.

10

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

14

432-612

COTTER PIN,3/32" x 3/4"

2шт.

15

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

16

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

17

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

18

47453058

CONSTRUCTION DIA

Convert 2 Lever to Foot Swing, Incl 1 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

47453061

CONSTRUCTION DIA

Convert 2 Lever to Foot Swing, Extendable Dipper, Incl 1 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
