Запчасти Case 580N EP (35.355.AK[03]) - VAR - 742369 - BACKHOE ARM, MECHANICAL CONTROL, SLEWING/SWING, COVER (35) - HYDRAULIC SYSTEMS

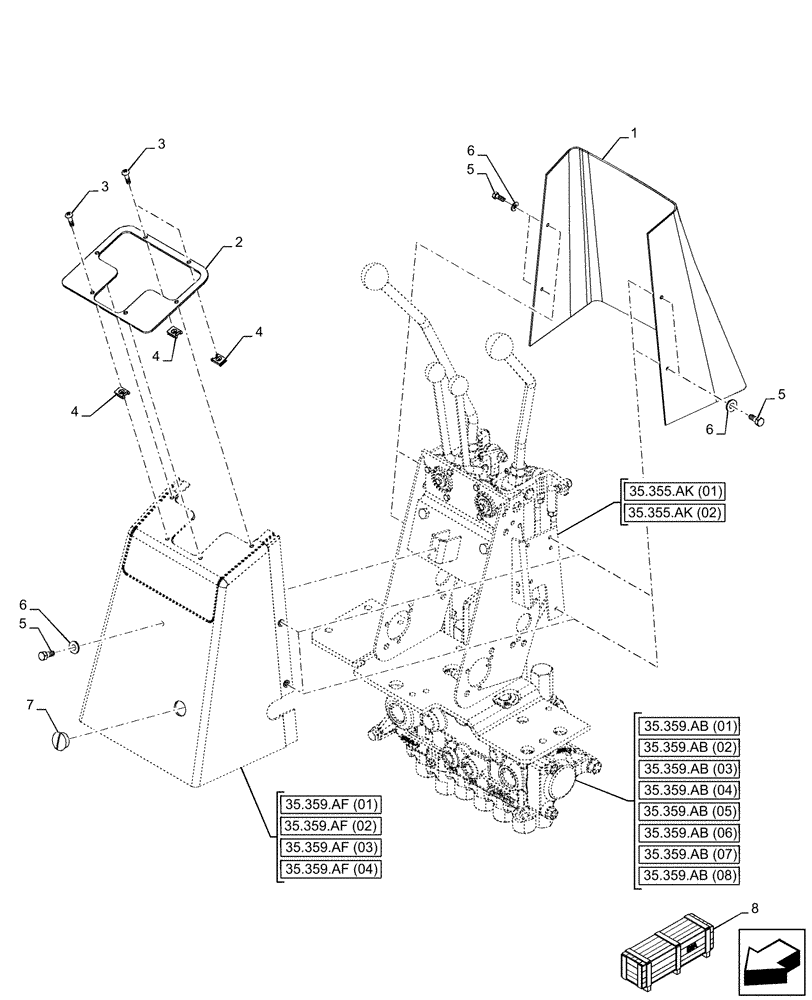

Схема запчастей Case 580N EP - (35.355.AK[03]) - VAR - 742369 - BACKHOE ARM, MECHANICAL CONTROL, SLEWING/SWING, COVER (35) - HYDRAULIC SYSTEMS
35.359.af (02)
3
6
8
6
6
5
4
1
7
5
2
3
4
4
5
35.359.ab (06)
35.355.ak (01)
35.355.ak (02)
35.359.ab (01)
35.359.af (03)
35.359.af (01)
35.359.ab (03)
35.359.ab (08)
35.359.ab (04)
35.359.ab (02)
35.359.ab (07)
35.359.ab (05)
35.359.af (04)

Артикул

Название

Примечание

Количество

1

390758A1

COVER

Rear Backhoe Console 2 Lever

1шт.

2

136824A1

LARGE PLATE

Boot Retaining 2 Lever

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

6шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

5

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

6

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

7

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

8

47453063

CONSTRUCTION DIA

Convert Foot Swing to 2 Lever, Standard Dipper, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47453065

CONSTRUCTION DIA

Convert Foot Swing to 2 Lever, Extendable Dipper, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 11
