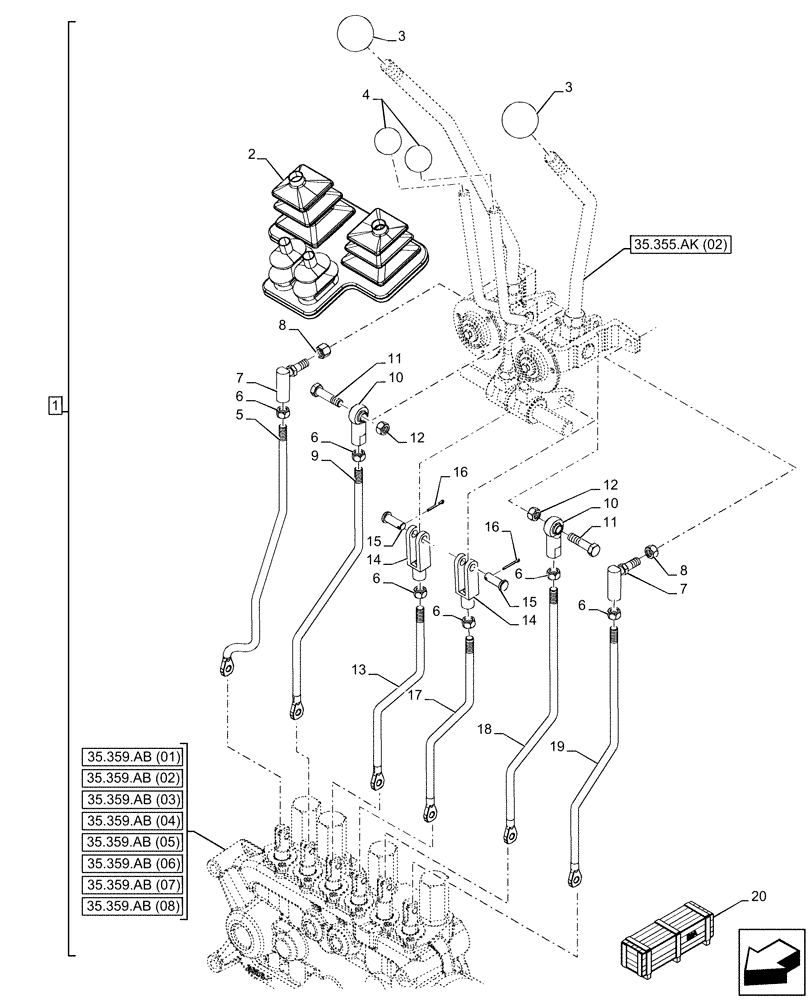

Запчасти Case 580N EP (35.355.AK[01]) - VAR - 742369 - BACKHOE ARM, MECHANICAL CONTROL, SLEWING/SWING, ROD (35) - HYDRAULIC SYSTEMS

1

87309482

LEVER

ASSY, 2 Lever without Extendable Dipper, Incl 2 - 19

1шт.

See Lever Components also in Figure 35.355.AK (02)

1шт.

2

D149868

BOOT

2 Lever Control

1шт.

3

D39118

KNOB

Valve Control

2шт.

4

D59912

KNOB

Control Handle

2шт.

5

87422253

THREADED ROD,9.53mm D x 385mm L

1шт.

6

425-116

NUT,3/8" - 24, Gr 5

6шт.

7

D149295

BALL JOINT,3/8"

3/8"

2шт.

8

231-2446

NUT,3/8"-24, GB

2шт.

9

87422256

THREADED ROD,9.53mm D x 378mm L

1шт.

10

87382812

BALL JOINT HEAD,3/8" - 24

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

87452404

THREADED ROD,9.53mm D x 277mm L

Stabilizer Control, LH

1шт.

14

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

15

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

87452406

THREADED ROD,9.53mm D x 277mm L

Stabilizer Control, RH

1шт.

18

87422262

THREADED ROD,9.53mm D x 367mm L

1шт.

19

87422264

THREADED ROD,9.53mm D x 384mm L

1шт.

20

47453063

CONSTRUCTION DIA

Convert Foot Swing to 2 Lever, Standard Dipper, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

47453065

CONSTRUCTION DIA

Convert Foot Swing to 2 Lever, Extendable Dipper, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
