Запчасти Case 580N EP (35.300.AQ[01]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

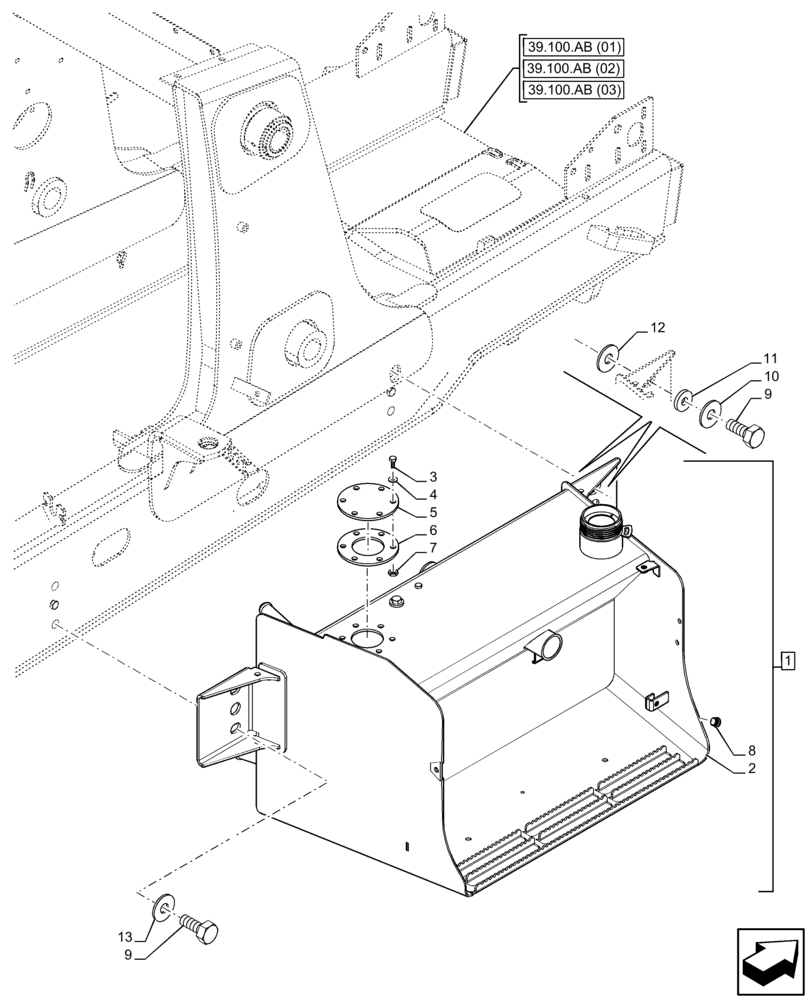

Схема запчастей Case 580N EP - (35.300.AQ[01]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS
7
3
13
4
9
12
2
8
11
5
39.100.ab (03)
6
39.100.ab (02)
9
1
10
39.100.ab (01)

Артикул

Название

Примечание

Количество

1

84480847

TANK,53L

Oil, ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Oil Tank, Incl in 1

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

5

87666894

COVER

1шт.

6

87666896

GASKET,110mm OD, 50mm ID, 18mm ID

1шт.

7

379184A1

RIVET,Flng, 10.97mm OD x 27.5mm L

6шт.

8

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

9

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

4шт.

10

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

11

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

12

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

13

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

Выбрано товаров: 13
