(35.300.AN[01]) - HYDRAULIC SYSTEM, OIL FILTER

Запчасти Case 580N EP (35.300.AN[01]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS

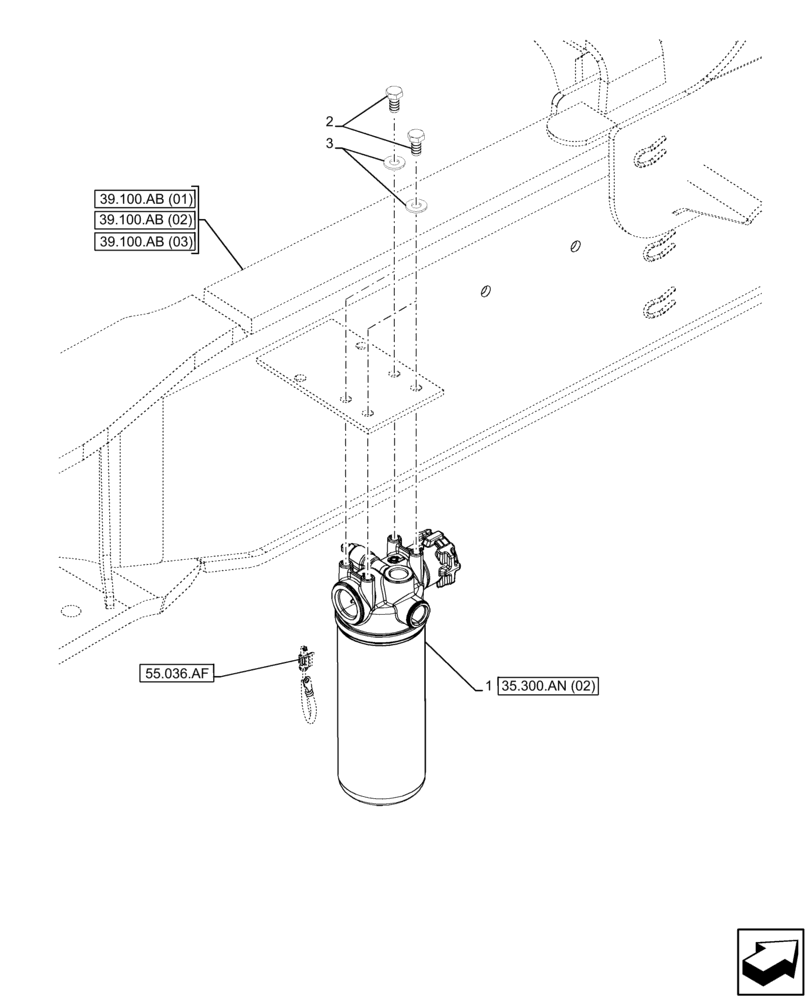

Схема запчастей Case 580N EP - (35.300.AN[01]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS
3
1
35.300.an (02)
55.036.af
2
39.100.ab (02)
39.100.ab (03)
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84248499

HYDRAULIC OIL FILTER

ASSY

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

Выбрано товаров: 3
