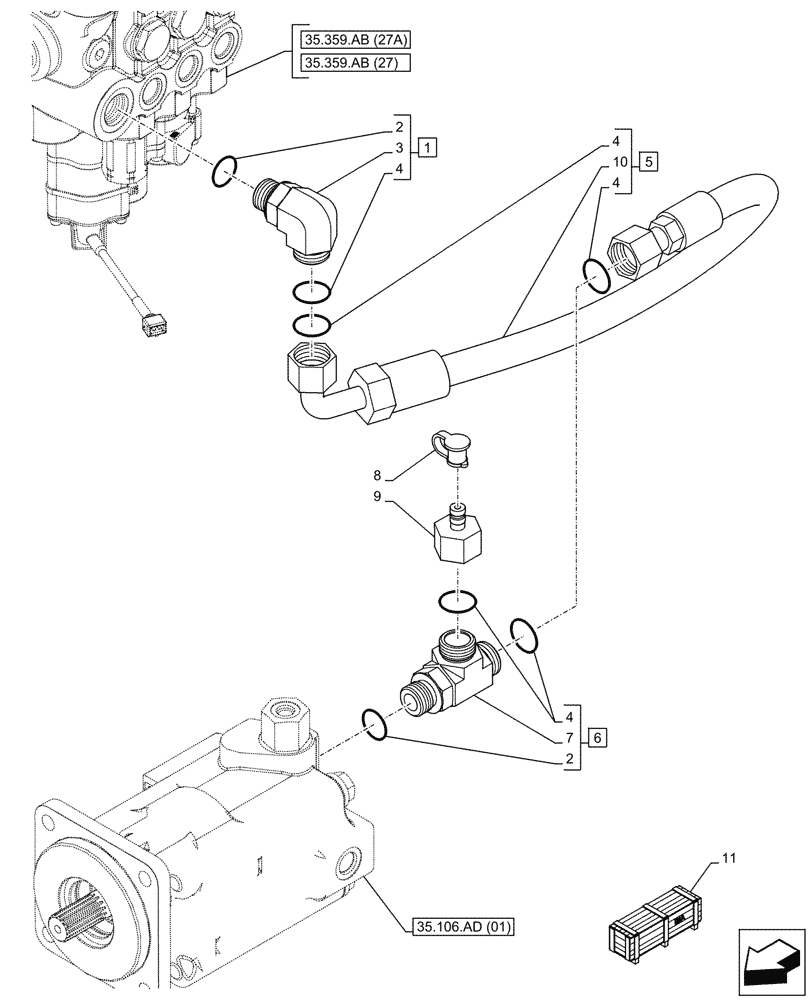

Запчасти Case 580N EP (35.106.AO[03]) - VAR - 747864 - LOADER, CONTROL VALVE LINE, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 2 (Qty 1), 3, 4 (Qty 1)

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

90‹ Elbow, Incl in 1

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

5

84391232

HOSE ASSY.,16mm ID x 695mm L

695mm, Pump to Valve ASSY, Incl 4 (Qty 2), 10

1шт.

6

84238739

FITTING,1-3/16-12 ORFS x 1-1/16-12 ORB

ASSY, Incl 2 (Qty 1), 4 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

H434163

DUST CAP

1шт.

9

84241474

DIAGNOSTIC COUPLER

1шт.

10

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

11

47955703

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 4, 5, 10

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47661783

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 4, 5, 10

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47661814

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 4, 5, 10

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
