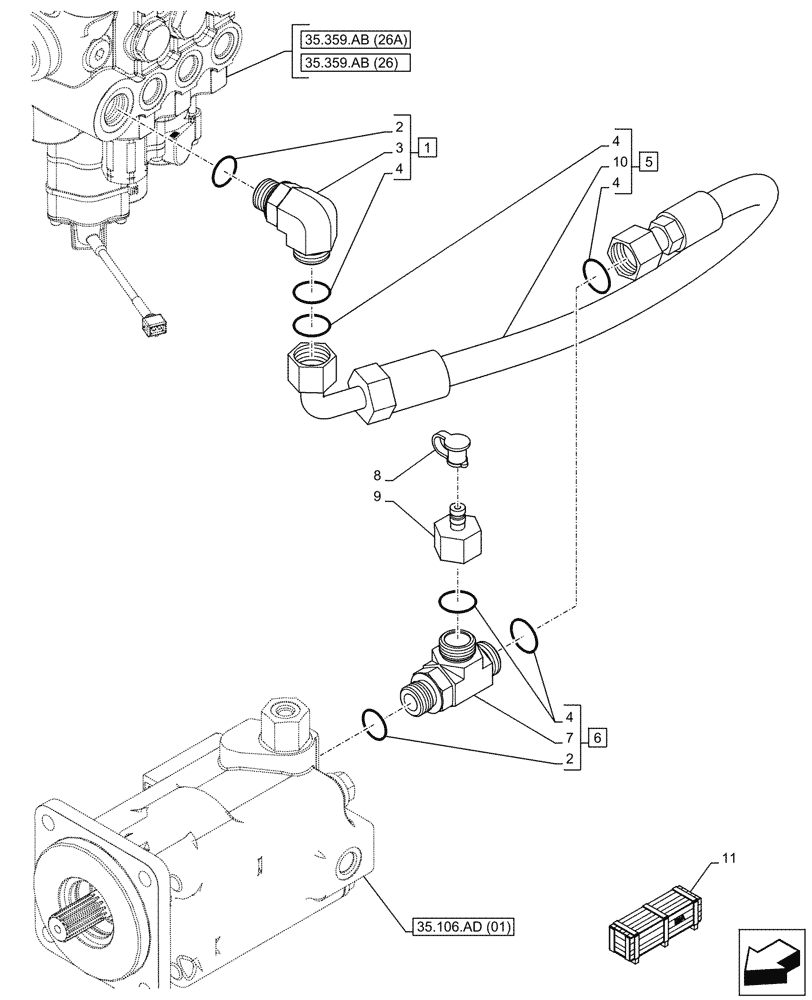

Запчасти Case 580N EP (35.106.AO[02]) - VAR - 747776 - LOADER, CONTROL VALVE LINE, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 2 (Qty 1), 3, 4 (Qty 1)

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

5

84391232

HOSE ASSY.,16mm ID x 695mm L

Pump to Valve, 695mm L ASSY, Incl 4 (Qty 2), 10

1шт.

6

84238739

FITTING,1-3/16-12 ORFS x 1-1/16-12 ORB

ASSY, Incl 2 (Qty1), 4 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

H434163

DUST CAP

1шт.

9

84241474

DIAGNOSTIC COUPLER

1шт.

10

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

11

47661785

CONSTRUCTION DIA

3 Spool, Mechanical Transmission, Powershift Control, Incl 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47955740

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 4, 5, 10

1шт.

Valid for 580N EP Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47661747

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 4, 5, 10

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
